Pallet shredder machines are suitable for handling a wide range of wood waste materials. such as MDF plywood board, chipboard, OSB, hardwood, softwood, veneers (mixed with wood), cardboards (mixed with wood), paper, logs, wood pallets, bark, wood timber, wood tray, solid timber waste, demolition wood, wooden floor, wood pallet, wood sofa, wood furniture, wooden box, MDF plywood board, wood board, etc.
Double Shaft Industrial Used Pallet Shredder Machine Application Areas:
Pallet shredder machines are suitable for handling a wide range of wood waste materials. such as MDF plywood board, chipboard, OSB, hardwood, softwood, veneers (mixed with wood), cardboards (mixed with wood), paper, logs, wood pallets, bark, wood timber, wood tray, solid timber waste, demolition wood, wooden floor, wood pallet, wood sofa, wood furniture, wooden box, MDF plywood board, wood board, etc.
Pallet shredder in scrap wood pallet recycling
As an efficient device, a shredder can shred waste wooden pallets into smaller pieces or particles. This processing method not only facilitates subsequent transportation and storage, but also effectively reduces the volume and weight of waste wooden pallets, reducing processing costs.
By using a shredder, waste wooden pallets can be transformed into reusable resources. These fragments can be used to manufacture new wood products, biomass fuels, or for other forms of reuse, thereby achieving resource recycling.
In addition, the shredder can also be customized and modified as needed when processing waste wood pallets to meet different production needs and scenarios. For example, the blades and speed of the shredder can be adjusted to accommodate waste wood pallets of different materials and thicknesses; The shredder can also be combined with other equipment such as conveyor belts, sorters, etc. to achieve automated processing and classification of waste wood pallets.

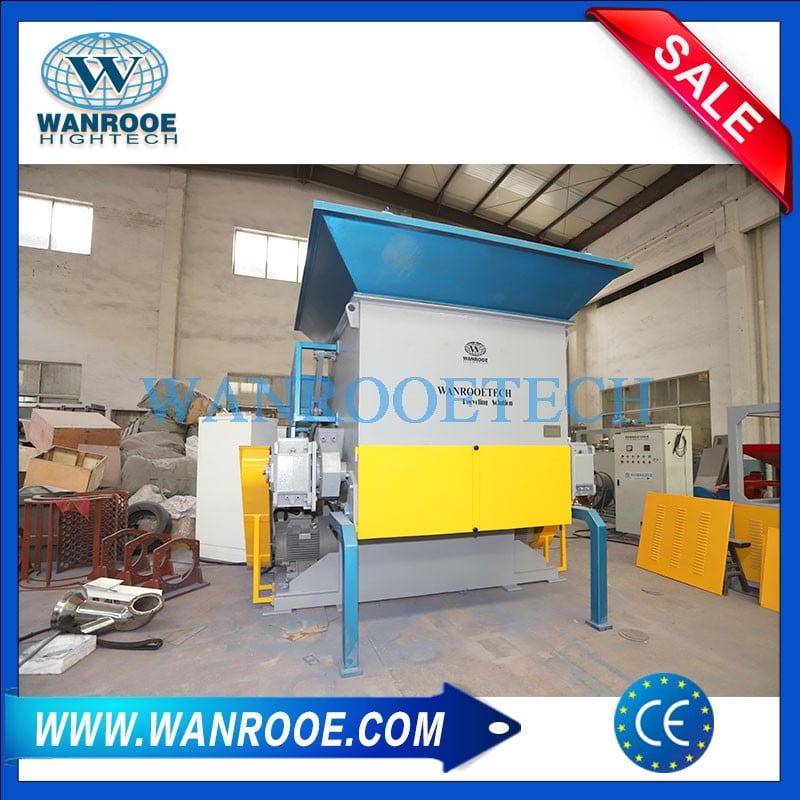

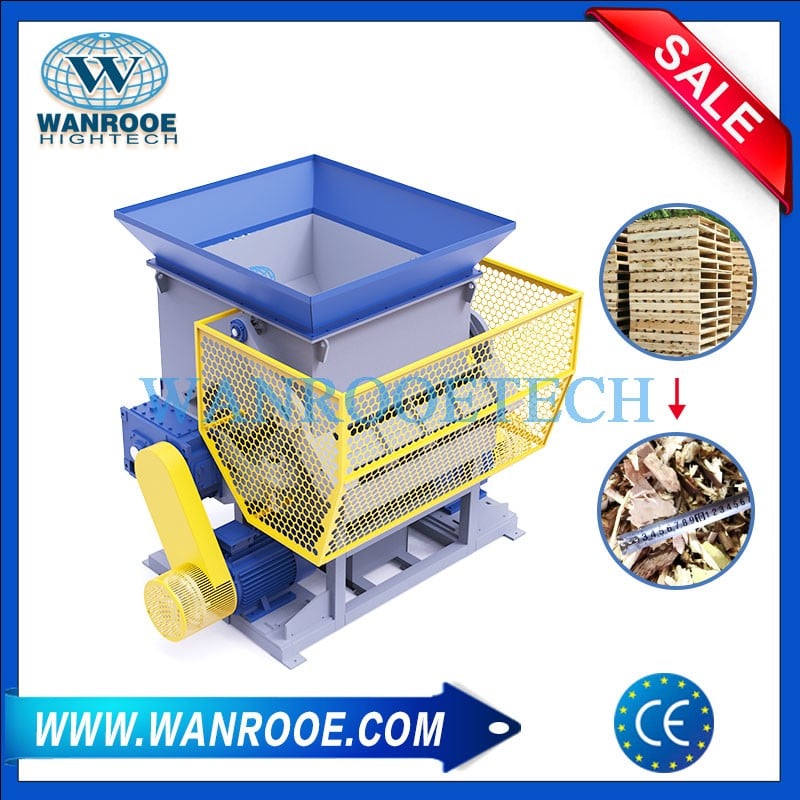

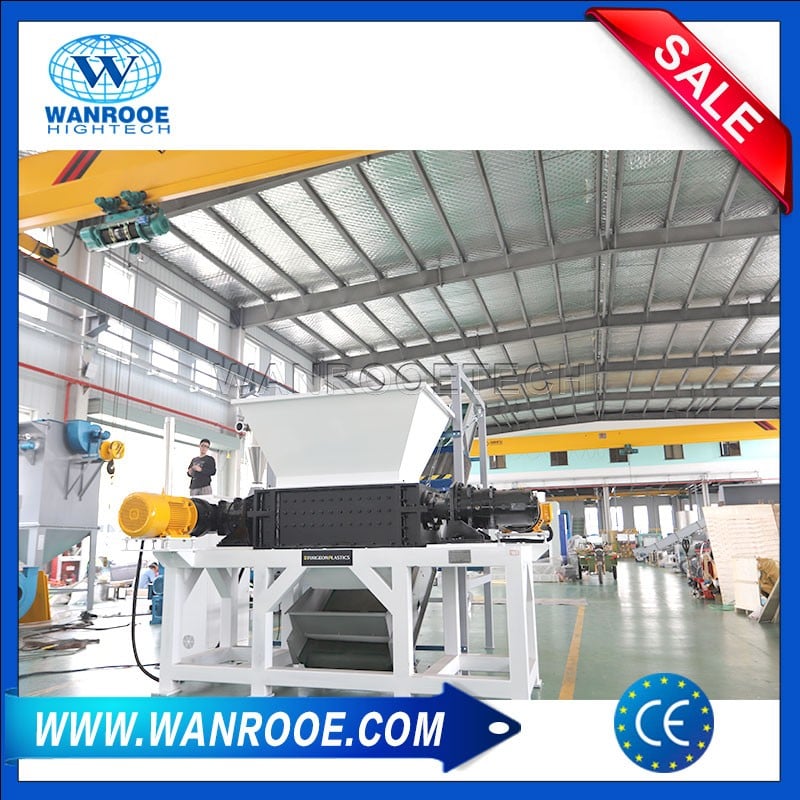

Double Shaft Industrial Used Pallet Shredder Machine Description:
WANROOETECH’s wooden pallet shredder has been specially designed for shredding all kinds of pallets, damaged EUR-pallet and packing wood. Depending on the required throughput, we offer you different types of shredding machines specially adapted for shredding pallets, boxes or packing wood. As the shape of the hopper is made according to your company’s needs, loading can be done by wheel loader, forklift truck, claw or even by hand.

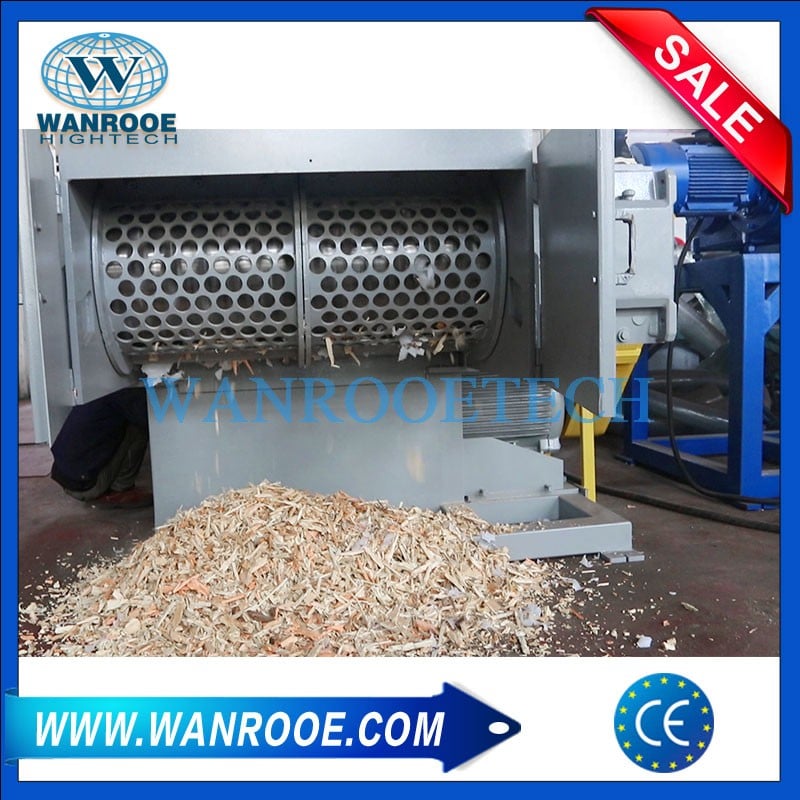

Depending on the type of pallet shredder, throughputs ranging from 0.5 t/h to 20 t/h can be achieved. We convert a stack of wooden pallets into mulch, grind clean dimensional lumber into animal bedding, and process a heap of mixed wood waste into fuel chips. According to your required solution, the discharged particles can be effected by means of a conveyor belt, an auger, a spiral lift, or a suction system. The pellet size, adjustable from 15 mm to 100 mm, depends on the grate diameter. All dust emissions are taken care of by air cyclones.

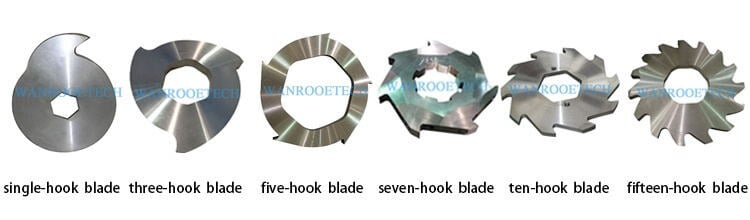

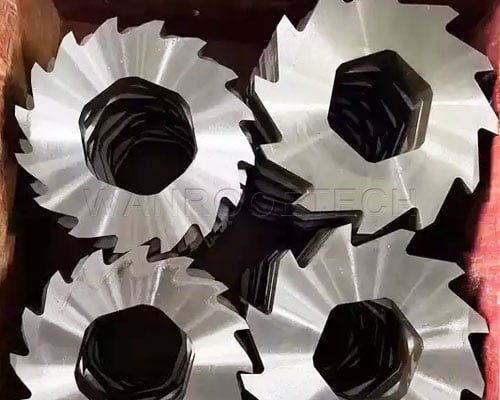

Double Shaft Shredder Blades(According to different materials choose different blades ):
Double Shaft Industrial Used Pallet Shredder Machine Components:

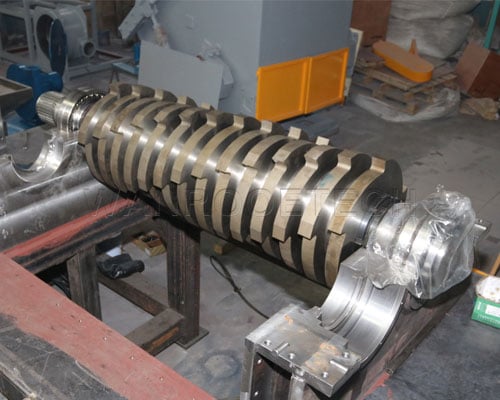

Shredder Chassis The whole chassis is made of welded steel plate and finely machined by CNC gantry milling, which has high bearing capacity, high impact resistance and more stable quality. | Shredder Spindle The shredder spindle is made of high alloy, forged and heat-treated and tempered as a whole, and then machined into hexagonal, octagonal and spline form by CNC gantry milling after fine turning, with long service life. |
Shredder Blade The shredder blade is made of special steel, forged, faded, refined, vacuum heat treatment, computerized wire cutting, CNC grinding machine processing. | Segmented Blades The segmented blade design can greatly reduce the blade changing time and cost. The blade comprises of the blade holder, and two types of blade segments, with and without hooks. Worn blade segments can quickly and easily be removed and replaced by simply removing the securing screws. |

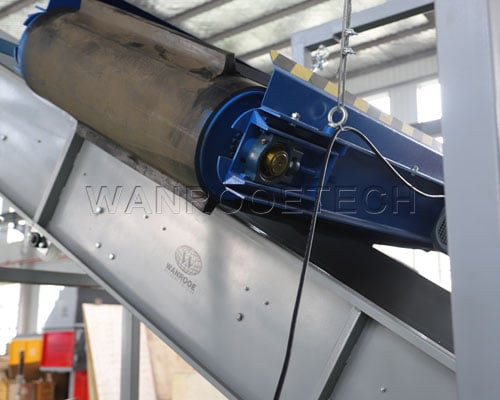

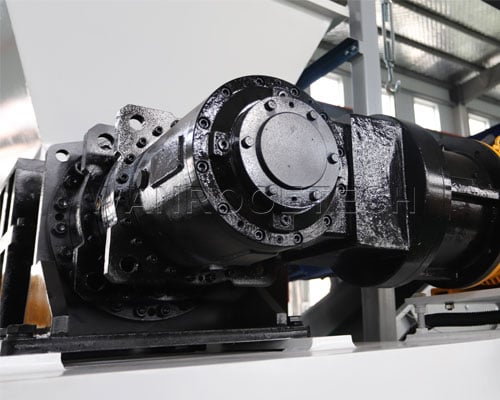

Magnetic Separator(optional) It can effectively remove ferromagnetic metals, and the removal rate of magnetic metals reaches 99.7%.. | Planetary Reducer The reducer chassis adopts welded box, helical gear, planetary gear transmission, with small volume, low noise, high torque and other characteristics, higher transmission efficiency. |

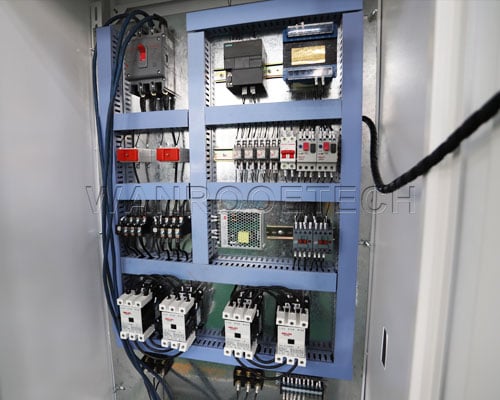

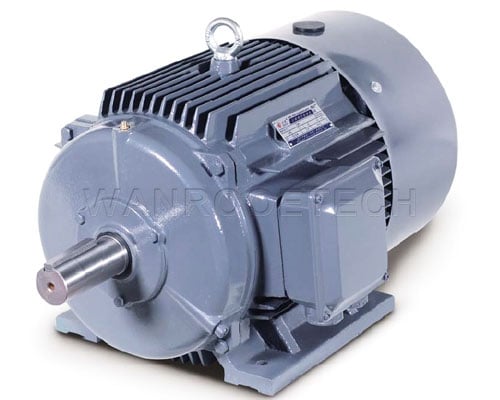

Motor The motor adopts Siemens, Wanan and other domestic brands of pure copper motor, with stable and reliable quality, and can be customized according to requirements. | Electronic Control The whole model adopts frequency conversion control and conforms to international standards such as CE/CSA. |
Double Shaft Industrial Used Pallet Shredder Machine Technical Features:
1. Our wood pallet shredders can be employed as either a primary or secondary shredders and can be seen working anywhere from the waste management company to biofuel producers;
2. Dual shafted, slow-speed, high-torque waste shredder with hardened steel cutters;
3. The two cutting rotors powerfully grab the feed material, and no matter the feed material is a large piece of hard plastic or heavy tires, this machine can easily shred them into small pieces;
4. Double shaft wood pallet shredder is able to process a number of different materials; shredder is designed with a powerful engine, long working length and aggressive input, Internal feeding volume bigger than traditional and common single shaft shredder machine and allow you use forklift truck to feed.
5. Heavy structure: the frame and structure of our shredders are made of high-thickness sheets and tubular. Blades are manufactured from high-quality steel, suitable for shredding tough materials and for extra long life;
6. Depending on the requirement, these discs (blades) are available in a wide range of quantities, qualities, and shapes with the new double-shaft shredder;
7. Any overloads caused by foreign material are sensed by the PLC controller and cause the shaft rotation to stop and reverse direction to clear the foreign matter, and then resume;
8. Cutter's removal and replacement can be carried out safely and simply.
9. Our shredders Use a planetary reducer, not a traditional gearbox, and the planetary gearbox has the following advantages: High Efficiency, Greater Stability, Compact Size, Higher Torque Density, Cost-Effective Precision, High Radial Loads.
10. Cooler system(optional) can maintain the temperature for continuous operation.
Model | Shredding Motor Power (kw) | Shredding Chamber size(mm) |
PNSS-300 | 7.5 | 510×300 |
PNSS-400 | 7.5 | 510×400 |
PNSS-600 | 7.5+7.5 | 510×600 |
PNSS-800 | 18.5+18.5 | 600×800 |
PNSS-1000 | 22+22 | 800×1000 |
PNSS-1200 | 30+30 | 1000×1200 |
PNSS-1400 | 55+55 | 1400×1200 |
PNSS-1600 | 55+55 | 1600×1200 |
PNSS-1800 | 75+75 | 1800×1400 |
PNSS-2000 | 90+90 | 2000×1400 |
