Swing Arm Vertical Drum Waste Wood Shredder Swing Arm Vertical Drum Waste Wood Shredder

This Swing Arm Vertical Drum Waste Wood Shredder have been designed for a wide range of applications and industries such as pallets and big barrels in mind, house and general recycling, electronic waste, While it can be used for in house recycling in big volume blow moulding operations; additionally, it is also versatile enough to be used for general recycling in the plastic and wood industry.

Quantity:
Share this:
  • Product Description
  • Video
  • Parameter
  • Comparsion

Swing Arm Vertical Drum Waste Wood Shredder Application Areas:
Waste wood shredder machine is mainly used in the crushing and recycling of wood, furniture factory scraps, scrap furniture, wooden pallets, building templates, logs, branches, stumps, roots and other wood.

Waste Wood Shredder, Wood Shredder, Swing Arm Shredder, Vertical Drum Shredder,Single Shaft Shredder

Swing Arm Vertical Drum Waste Wood Shredder Description:

Swing Arm Vertical Drum Waste Wood Shredder have been designed for a wide range of applications and industries such as pallets and big barrels in mind, house and general recycling, electronic waste, While it can be used for in house recycling in big volume blow moulding operations; additionally, it is also versatile enough to be used for general recycling in the plastic and wood industry. According to customers' requirement, the PNDS B series shredder can work with WANROOETECH's crusher machine for the next step of size reduction.

This single shaft plastic shredder machine is newly designed especially for shredding various big solid materials, unmanageable materials, plastic containers and barrels, plastic film, plastic pipe, fiber and paper which the normal crusher can't handle.

The materials are pushed into the shredding chamber by hydraulic. Independent drive system and solid structure make the running stable.

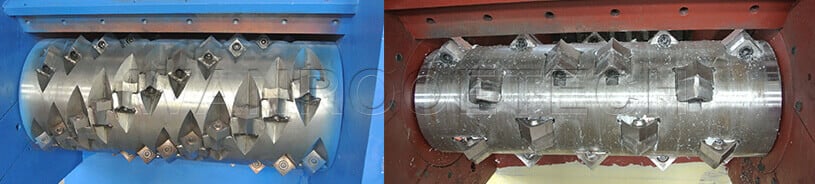

Single Shaft Shredder 'V' shaped blade:

Single Shaft Shredder 'V' shaped blade


Swing Arm Vertical Drum Waste Wood Shredder Components:

Hydraulic-driven swing pusherHeat treated rotor knives

Hydraulic-driven swing pusher

To push the objects close to the rotary cutters to achieve efficient shredding performance

Heat treated rotor knives

Special DC53 steel (hardened) four edges use before the replacement

V-cutting rotor design

Wear Resistant Tungsten surface coating

V-cutting rotor design

with staggered cutter positioning

Wear Resistant

Tungsten surface coating for abrasive applications

Easy operation Simply press the buttons on the control panel to control every movement, and Replaceable screen at the outlet

Easy operation

Simply press the buttons on the control panel to control every movement, and "auto mode" can be selected on the control panel for fully automatic operation

Replaceable screen at the outlet

For controlling the output granules below certain size. Size of the screen mesh can be customized according to your need

PLC control

Hydraulic System

PLC control

Making it easier for fault diagnosis and maintenance

Hydraulic System

The pressure and rate of flow can be adjusted according to different materials.


Swing Arm Vertical Drum Waste Wood Shredder Features:

1)Precisely processed combined frame made of extra-thick plates; Lange-angle, hexagon prism of power slewing axis; Big hopper with big caliber for feeding big material
2)PLC control system with automatic overload protection and auto-reverse switch
3)Unique hydraulic pushing system accelerates the shredding speed, for light material particularly
4)Each dynamic blades has four cutting edges which enable reutilization after being abraded, by rotating 90 degree
5)Each fixed blades has two cutting edges which enable reutilization after being abraded, by rotating 180 degree
6)Quiet operation at low speed
7)Screen perforation is adjustable according to customers' requirement
8)The shredders can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc.


ModelPNDS1200B48PNDS1500B48PNDS1800B48PNDS2000B48
Motor Power(kw)759055+5575+75
Hydraulic power(kw)5.55.55.55.5+480
Rotating diameter(mm)480480480480
Fixed knife3PCS3PCS3PCS3PCS
Rotating knife70PCS102PCS132PCS144PCS
