Straw Biomass Recycling Machine

Straw biomass recycling machines can treat straws, branches, roots, cornstalks, wooden pallets, bean stalks, etc. The whole process includes a conveyor belt, shredder, buffer silo, wood crusher, wood briquetting machine, cooling silo, and weighing and bagging machine. Biomass recycling machine businesses that convert waste into alternative energy (energy production) can use this machine for a continuous supply of fuel. The resulting material has uniform dimensions and a high calorific value and can be used as an alternative fuel for boilers and furnaces. PLC intelligent system realized high automatic, the whole biomass recycling machine just needs 1-2 man to operate. With 20 years of experience in recycling, Wanrooe not only mastered the key technology but also improved machine designs to address specific product features. Wanrooe offers biomass recycling solutions that are high output and low energy consumption.

Straw Biomass Recycling Machine

Why do we need straw biomass recycling machines?
By converting waste into energy, biomass shredding systems (biomass shredders) are becoming increasingly popular. Biomass is used as an alternative fuel to produce electricity or heat. It is developed from plant or agricultural waste, such as wood, garden trimmings, and residues from crops and animals. These materials become useful again through the production of biofuels. However, in order to produce biomass for energy, the feed material first needs to be chopped and pelletized to the right size.

A twin-shaft shredder is an ideal model if a high output of 30-50 t/h is desired. Thanks to its high torque and oversized cavity, bales and loose material can be easily broken down and reduced.

With our single, twin and four-shaft shredder technology, we can help you produce biomass as efficiently as possible. In order to provide the best recycling solution, we listen to and analyse our customers’ requirements before recommending the most suitable machinery.


Why recycle straw biomass waste?
Among the various renewable energy sources, vigorous development is restricted and questioned due to the potential ecological risks of nuclear energy and large hydropower, and regional resource constraints such as wind and geothermal, while biomass is recognised for its ubiquity, abundance and renewability. Biomass includes plants, animals and microorganisms, with representative biomass such as crops, crop waste, wood, wood waste and animal manure. Biomass is currently widely used for power generation, but biomass shredding is commonly required before it can be converted into heat or electricity.


Waste Biomass Recycling Process:

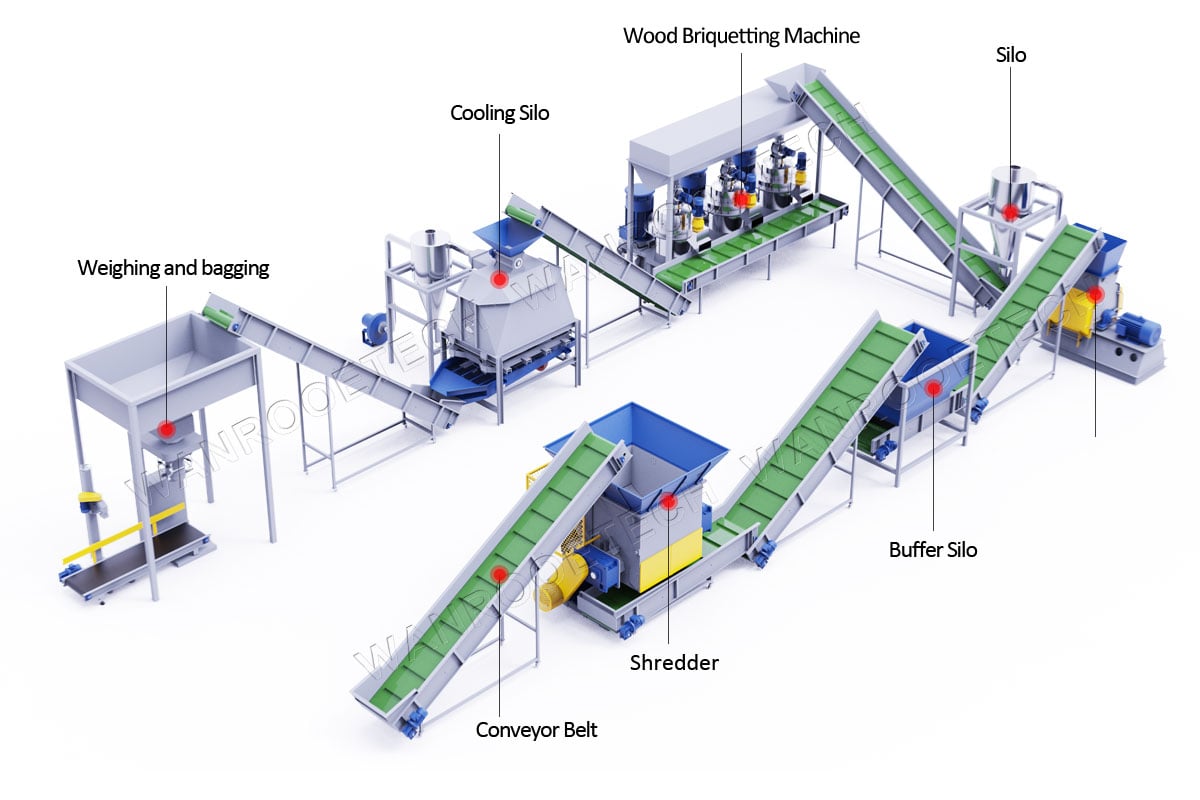

Conveyor Belt →Wood Shredder→Conveyor Belt→Buffer Silo→Wood Hammer Crusher → Silo→ Wood Briquetting Machine→ Conveyor Belt→Cooling Silo→Weighing and Packing Machine

Waste Biomass Recycling Process

Biomass recycling machine process includes the following steps:

    1. Waste biomass is fed into a hydraulic sing arm shredder for initial shredding.

    2. The resulting waste biomass chips are passed through a suspended magnetic separator to remove any metal contaminants.

    3. The waste biomass chips are then passed through a magnetic separator to further remove any metal contaminants.

    4. The waste biomass chips are then collected in a buffer hopper for further processing.

    5. The waste biomass chips are then passed through a hammer crusher to create wood sawdust.

    6. The wood sawdust is collected in another buffer hopper for further processing.

    7. The wood sawdust is then compressed into pellets using a wood chip pellet machine.

    8. Finally, the wood pellets are weighed and packaged using a weighing and packaging machine, Pack the qualified pellets from 10kg, 20kg, or 1 ton into a plastic bag, and then sew with a thermoplastic sealing machine to make the pellets dry and waterproof.


What is biomass shredder?
The biomass shredder is a machine for size reduction of MSW/SRF/RDF, farm waste, organic waste, food waste, logs and sawmill residues. It has been developed based on over 20 years of experience in the energy industry and is built to last. The throughput is sized to suit many applications such as pallet production or the incineration of solid fuels.

Application areas of the biomass shredder
Wood industry: tree trunks, branches, bamboo, wooden pallets
Household use: garden pruning, food waste
Industrial use: wooden boxes, wooden pallets, size reduction of wooden products
Agricultural use: sugar cane, straw, agave bagasse, sugar cane waste.
Briquetting and pelletizing.



Advantages of the biomass shredder
High output, from 10 to 40 tonnes/hour.
The controllable output size of approx. 50 mm.
Helps prevent the depletion of natural resources due to the generation of renewable energy
Diversion from landfill
Reduces waste
Works with pelletizer to produce high calorific wood fuel
Easy to use and maintain
Environmentally friendly operation
Our robust biomass shredders are highly customizable to meet the needs of the energy industry and recycling business.


Biomass shredded for use as fuel
Renewable raw materials can be used sustainably on a regional scale as bioenergy, with considerable production and utilisation potential.

Compared to loose material, pressing biomass into formed coal improves combustion performance. In the form of briquettes, the biomass raw material can be ideally used for combustion in a heating furnace.

By using your own energy, you can become independent and generate sustainable heat with a clear conscience.


Our biomass shredder experts are ready to help you turn your waste into energy. Interested in learning more about our biomass shredders or crushers? Please feel free to get in touch with us!

In order to better provide you with a professional answer, when sending an inquiry, please describe your parameters or technical requirements (such as processing materials, output size, capacity, etc.), we will reply to you as soon as possible!
