20 years focusing on recycling
WANROOETECH is China professional plastic pipe shredder manufacturer, we supplied plastic pipe shredder, PVC pipe shredder, HDPE pipe shredder, plastic shredder machine, plastic block shredder, Find complete details and price about PVC HDPE Plastic Pipe Shredder Machine, please contact us!
PVC HDPE Plastic Pipe Shredder Machine Description:
As a waste plastic processing and recycling equipment, the plastic pipe shredder is more simple and convenient in structure than the plastic shredder. Generally, it can be used to process unprocessed raw materials or leftovers to make its size smaller. A typical example is to shred the scraps of plastic pipes or rubber pipes and use them as raw materials to melt them into pellets. Large-scale plastic pipe shredders are usually single-shaft shredders. The rubber pipes close to the main shaft are scraped and shredded by blades embedded in the main shaft. The thick rubber pipes are gradually reduced through the continuous advancement of the push plate. The limit dead angle of the material board realizes all the crushing of the rubber pipe. The output size can be limited according to the size, but considering the output and efficiency issues, if fine crushing is required, a plastic crusher can be equipped behind the machine to achieve high production and high efficiency.
PVC HDPE Plastic Pipe Shredder Machine Working principle:
The motor drives the shaft to make the knife rotates at high speed, the PVC HDPE plastic pipe is put between the knife shaft and fixed knife, the materials are shredder, the qualified size will discharge from the screen mesh, the oversize material will be sent back for re shredding. The final product size can be adjusted by changing the final product size.

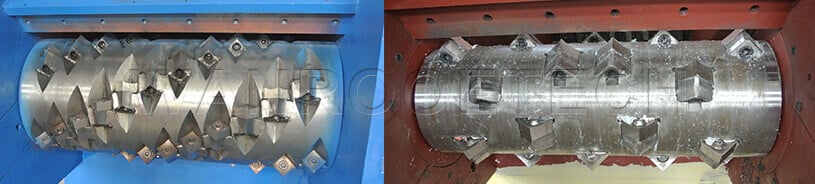

Single Shaft Shredder 'V' shaped blade:
PVC HDPE Plastic Pipe Shredder Machine Advantages:
1. PVC HDPE plastic pipe shredder single shaft for plastic can shred various bulk materials, basket materials, pipe, plate, sheet, tire, big roll film
2. The frame is combinational structures, made from precision machined extra-thick sheet, slewing axis is forced, Lange-angle, hexagonal prism, the hopper is large-caliber and substantial, so good-sized material is practicable.
3. Revolving knife is designed and processed particularly in thickness, shape.
4. PLC control system, forward and reverse operate and stop automatically can protect the machine when the materials are too big and much. Operate safely, low-speed running, low noise, little dust.
PVC HDPE Plastic Pipe Shredder Machine Components:
Pusher System Reinforced baseplate can reduce the impact caused by material entering the cutting chamber. A dust collection device is equipped at the bottom of the pusher system to guarantee the long-term stable performance of internal components. | Heat treated rotor knives Special DC53 steel (hardened) four edges use before the replacement |
V-cutting rotor design with staggered cutter positioning | Wear Resistant Tungsten surface coating for abrasive applications |
Control panel Equipped with independent and reliable electrical control panel like SIEMENS PLC control system, DELIXI contactor, SCHNEIDER Electric, etc. Manual & automatic operational modes to choose, quite flexible and safe.Motor overload protection. | Screen Unit Wide range of screens with a variety of configurations and mesh sizes are replaceable based on customers' production requirements. The paper shredder will automatically stop while opening the screen unit to ensure operator safety. The screen is produced and mounted in sections, allow for easy maintenance. |
PLC control Making it easier for fault diagnosis and maintenance. | Movable Feeding Hopper Movable feeding silo ensure the rotor and knives shred the material all the time, high efficiency and big capacity.. |
PVC HDPE Plastic Pipe Shredder Machine Application Areas:
Plastic pipe shredders can mainly supply and discharge PVC pipes, chemical pipes, farmland irrigation and drainage pipes, polyethylene pipes for gas, PVC core foam pipes, PVC, PE, HDPE, PPR, double-wall corrugated pipes, aluminum-plastic composite pipes, cross-linked PE pipes, plastic-steel composite pipes, polyethylene silicon core pipes, and underground pipes are shredded.tic drums.
Model | Main Power(kw) | Hydraulic Power(kw) | Shredding Diameter(mm) | Shredding Rotor Length(mm) | Rotating&Fixed Blades QTY (PCS) | End Plastic Scrap Size(mm) |
PNDS-600A | 15-22 | 2,2 | 320 | 600 | 32+2*2 | 30-50 |
PNDS-800A | 30-45 | 3 | 400 | 800 | 38+2*2 | 30-50 |
PNDS-1000A | 37-55 | 4 | 400 | 1000 | 58+2*2 | 30-50 |
PNDS-1200A | 55-90 | 5.5 | 400 | 1200 | 95+2*3 | 30-50 |
PNDS-1500A | 75-132 | 5.5 | 480 | 1500 | 110+2*3 | 30-50 |
