PNMP Rotor Blades PVC Pulverizer Grinder PNMP Rotor Blades PVC Pulverizer Grinder

WANROOETECH is PVC pulverizer manufacturer, we supplied PVC Pulverizer Grinder, PVC Pulverizer Mill, PVC Recycling Pulverizer, Turbo-type PVC pulverizer, etc. Find Complete Details and price about PNMP Rotor Blades PVC Pulverizer Grinder, please contact us!

Share this:
  • Product Description
  • Video
  • Parameter
  • Optional Components

PNMP Rotor Blades PVC Pulverizer Grinder Description:
PNMP PVC Plastic mill is chiefly designed to grind PVC. The pulverizer uses turbo type blade. The static blade and rotary blade could be adjusted, thus you can get different sizes of PVC powder with one grinder. High output, low energy consumption and long lifespan attract many customers around the world. It can be used for PVC plastic from PVC pipe/profile/soft sheet/bottle/card from low to moderate hardness PVC.
The output of our PNMP pulverizer can reach 100-900kg/h (15-100mesh).
The plastic pulverizer machine is mainly composed of an electric motor, disc-type blade, feeding fan, vibrating sieve, dust removing system, etc.
According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc.

PNMP Rotor Blades PVC Pulverizer Grinder Machine Components:

Vibration Loader

PVC Pulverizer Disc

Vibration Loader

the material is sent to the vibrating screen by vibration

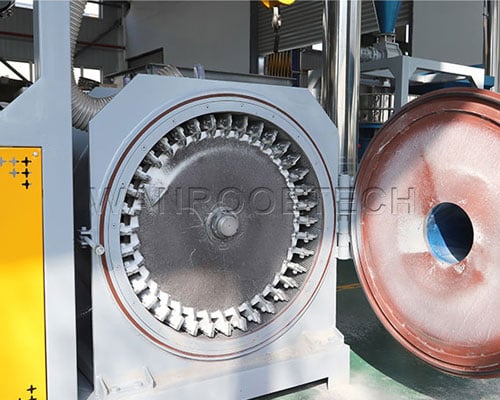

PVC Pulverizer Disc

Turbo-type pulverizer disc, Widely used for recycling PVC, such as PVC pipe, PVC profile, PVC sheets, SPC floor

PVC Pulverizer Blade

Conveying Pipe

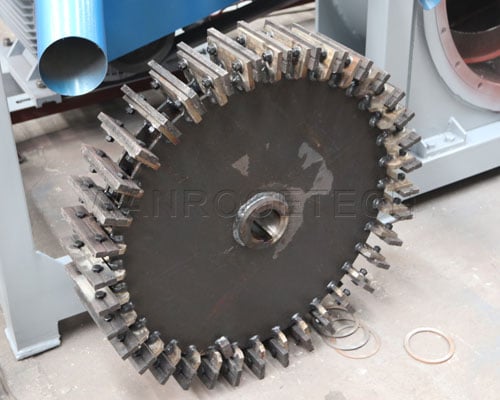

PVC Pulverizer Blade

Rotating and fixed blades, D2 or SKD-11 material, wear-resistant.The number of blades varies depending on the device model.

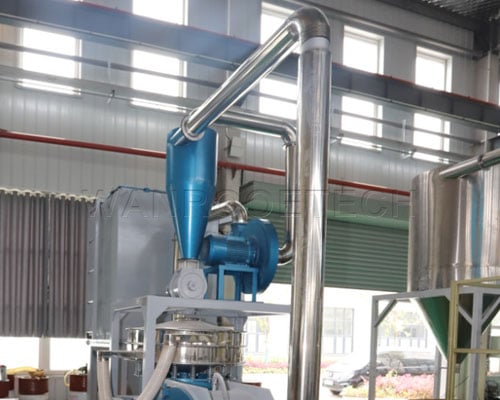

Conveying Pipe

All 304 stainless steel, durable.Non-rusting, non-sticking powder.Double layer pipeline, water supply in the middle layer.

PVC pulverizer vibrating screenIntelligent Control

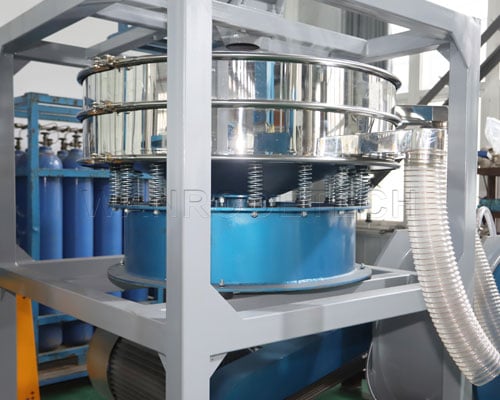

Vibrating Screen

Installation of screen according to the grinding mesh, continuous production, automatic classification and screening, easy to replace.

Intelligent Control

Can be adjusted according to the actual situation simple operation, saving time and effort

Bags Type Dust CatcherPulse Dust Collecter

Bags Type Dust Catcher

Smaller footprint, lower price, can reduce the workshop dust, customers with higher requirements for environmental protection can choose pulse dust catcher.

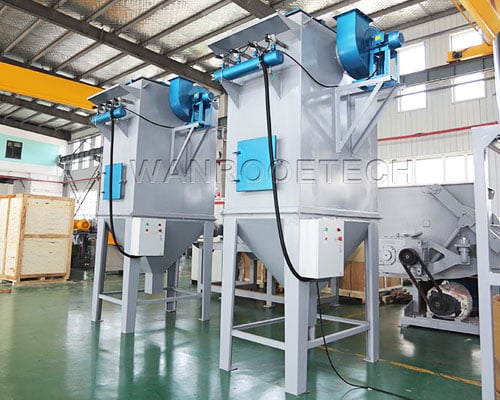

Pulse Dust Collecter(Optional)

Collect dust from products during the grinding process to prevent pollution.

PNMP Rotor Blades PVC Pulverizer Grinder Machine Technical Features:
1. PNMP Pulverizer can easy to grind all kinds of Hard & Soft PVC into powder.
2. The dust collector is added to effectively reduce dust pollution.
3. The discharging of the main fan reduces the labors intensity of operating workers.
4. The door cover of the host can be opened for the convenience of maintenance and replacement of cutters.
5. The mill uses the water and wind double cooling system, Prevent bearing and other parts from overheating.
6. The powder mesh is adjustable(15-100mesh).
7. Easy installation and maintenance, just open the door to clean up.
8. Well-known brand accessories, such as SKF bearings and Siemens motors, can work for a long time, saving the trouble of changing accessories frequently.
9. With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.

PNMP Rotor Blades PVC Pulverizer Grinder Machine Application Areas:
PNMP series high-speed turbo-type pulverizer is designed by our factory using German technology and our own production experience. It can be used for PVC plastic from PVC pipe, profile, soft sheet, bottle, card from low to moderate hardness PVC, PE and so on.

PVC Pulverizer Grinder,PVC Pulverizer Mill, PVC Recycling Pulverizer,Turbo-type pvc pulverizer

PCB Powder Making Machine, PCB Pulverizer, Computer Board Pulverizer, Cell Phone Board Pulverizer, TV Board Pulverizer

Disc Diameter (mm)5006008001000
Main Motor Power(kw)375575110
Vibrating Sieve Power(kw)0.750.750.751.1
Dimension L*W*H(mm)3500x1300x37003700x1450x37004300x1700x40005000x2000x4300

Optional Components

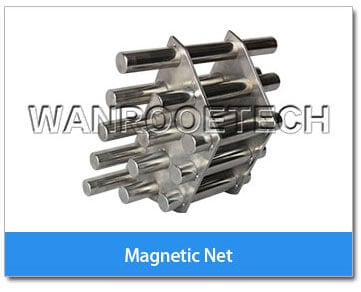

Magnetic Filter Frame

Metal Separator For Pulverizer Mill

Plastic Granules Feeder


PNWC Air-cooled Type Water Chiller

Automatic Weighing Packing Machine
