Soft PVC Plastic Pulverizer Machine Soft PVC Plastic Pulverizer Machine

WANROOETECH is pvc pulverizer manufacturer,we supplied Soft PVC pulverizer,Soft PVC mill,Rigid PVC pulverizer,Rigid PVC Mill,pvc pulverizer machine,etc. Find Complete Details and price about Soft PVC Plastic Pulverizer Machine,please contact us!

Quantity:
Share this:
  • Product Description
  • Video
  • Parameter
  • Optional Components

Soft PVC Plastic Pulverizer Machine Description:
This PNMP PVC Plastic mill is chiefly designed to grind PVC. The pulverizer uses turbo type blade. The static blade and rotary blade could be adjusted, thus you can get different sizes of PVC powder with one grinder. High output, low energy consumption and long lifespan attract many customers around the world. It can be used for PVC plastic from PVC pipe/profile/soft sheet/bottle/card from low to moderate hardness PVC.
The output of our PNMP pulverizer can reach 100-900kg/h (15-100mesh).

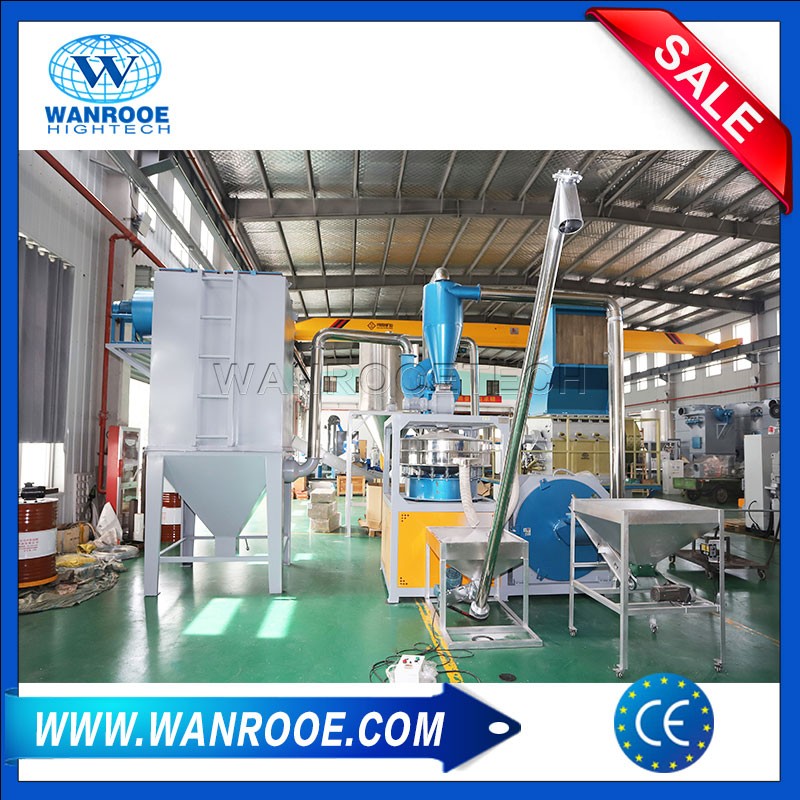

The plastic pulverizer machine is mainly composed of an electric motor, disc-type blade, feeding fan, vibrating sieve, dust removing system, etc.
According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc.



Soft PVC Plastic Pulverizer  Machine Components:

Vibration Loader

PVC Pulverizer Disc

Conveyor belt feeding

Used to load grinding PVC flake into pulverizer chamber by belt convey, The top of roller on belt conveyor made by magnetic roller which can remove any ferrous material from Plastic flake; It can protect the milling blade and increase the purity level of final plastic powder, the material is sent to the vibrating screen by vibration

PVC Pulverizer Disc

Turbo-type pulverizer disc, Widely used for recycling PVC, such as PVC pipe, PVC profile, PVC sheets, SPC floor

PVC Pulverizer Blade

Conveying Pipe

PVC Pulverizer Blade

Rotating and fixed blades, D2 or SKD-11 material, wear-resistant.The number of blades varies depending on the device model.

Conveying Pipe

All 304 stainless steel, durable.Non-rusting, non-sticking powder.Double layer pipeline, water supply in the middle layer.

PVC pulverizer vibrating screenIntelligent Control

Vibrating Screen

Installation of screen according to the grinding mesh, continuous production, automatic classification and screening, easy to replace.

Intelligent Control

Can be adjusted according to the actual situation simple operation, saving time and effort

Bags Type Dust CatcherPulse Dust Collecter

Bags Type Dust Catcher

Smaller footprint, lower price, can reduce the workshop dust, customers with higher requirements for environmental protection can choose pulse dust catcher.

Pulse Dust Collecter(Optional)

Collect dust from products during the grinding process to prevent pollution.

Working Principle of PVC Pulverizer:

Multifunctional plastic grinding mill is made up of four components: air conveying pipeline, cyclone separator, electric control panel and water supply. Putting raw materials into grinding chamber, through the classification and cooling of wind and water, people can get 40-100 meshes rubber powder.


Soft PVC Plastic Pulverizer Machine Technical Features:
1. PNMP Pulverizer can easy to grind all kinds of Hard & Soft PVC into powder.
2. The dust collector is added to effectively reduce dust pollution.
3. The discharging of the main fan reduces the labors intensity of operating workers.
4. The door cover of the host can be opened for the convenience of maintenance and replacement of cutters.
5. The mill uses the water and wind double cooling system, Prevent bearing and other parts from overheating.
6. The powder mesh is adjustable(15-100mesh).
7. Easy installation and maintenance, just open the door to clean up.
8. Well-known brand accessories, such as SKF bearings and Siemens motors, can work for a long time, saving the trouble of changing accessories frequently.
9. With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.


Soft PVC pulverizer,Soft PVC mill,Rigid PVC pulverizer,Rigid PVC Mill,pvc pulverizer machine

ModelPNMP-500PNMP-600PNMP-800PNMP-1000
Disc Diameter (mm)5006008001000
Main Motor Power(kw)375575110
Vibrating Sieve Power(kw)0.750.750.751.1
Capacity(kg/h)100-300200-500300-800400-900
Dimension L*W*H(mm)3500x1300x37003700x1450x37004300x1700x40005000x2000x4300

Optional Components

Magnetic Filter Frame

Metal Separator For Pulverizer Mill

Plastic Granules Feeder

Optional-Components_08

PNWC Air-cooled Type Water Chiller

Automatic Weighing Packing Machine

×
