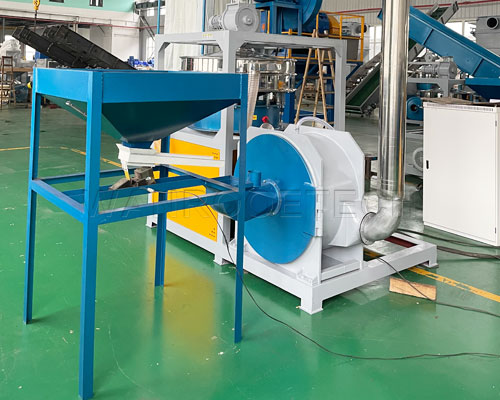

PVC Regrind Material Pulverizer Mill Description:
This PNMP PVC plastic pulverizer mill is chiefly designed to grind PVC. The pulverizer uses turbo type blade. The static blade and rotary blade could be adjusted, thus you can get different sizes of PVC powder with one grinder. High output, low energy consumption and long lifespan attract many customers around the world. It can be used for PVC plastic from PVC pipe/profile/soft sheet/bottle/card from low to moderate hardness PVC.
The output of our PNMP pulverizer can reach 100-900kg/h (15-100mesh).
The plastic pulverizer machine is mainly composed of an electric motor, disc-type blade, feeding fan, vibrating sieve, dust removing system, etc.

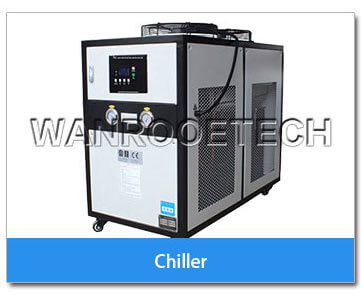

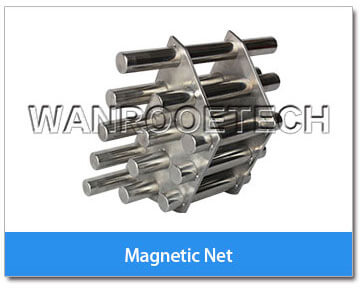

According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc.
PVC Regrind Material Pulverizer Mill Machine Components:
 |
|
Vibration Loader the material is sent to the vibrating screen by vibration | PVC Pulverizer Disc Turbo-type pulverizer disc, Widely used for recycling PVC, such as PVC pipe, PVC profile, PVC sheets, SPC floor |
|  |
PVC Pulverizer Blade Rotating and fixed blades, D2 or SKD-11 material, wear-resistant.The number of blades varies depending on the device model. | Conveying Pipe All 304 stainless steel, durable.Non-rusting, non-sticking powder.Double layer pipeline, water supply in the middle layer. |
 |  |
Vibrating Screen Installation of screen according to the grinding mesh, continuous production, automatic classification and screening, easy to replace. | Intelligent Control Can be adjusted according to the actual situation simple operation, saving time and effort |
 |  |
Bags Type Dust Catcher Smaller footprint, lower price, can reduce the workshop dust, customers with higher requirements for environmental protection can choose pulse dust catcher. | Pulse Dust Collecter(Optional) Collect dust from products during the grinding process to prevent pollution. |
PVC Pulverizer Mill Technical Features:
1. PNMP Pulverizer can easy to grind all kinds of Hard & Soft PVC into powder.
2. The dust collector is added to effectively reduce dust pollution.
3. The discharging of the main fan reduces the labors intensity of operating workers.
4. The door cover of the host can be opened for the convenience of maintenance and replacement of cutters.
5. The mill uses the water and wind double cooling system ,Prevent bearing and other parts from overheating.
6. The powder mesh is adjustable(15-100mesh).
7. Easy installation and maintenance, just open the door to clean up.
8. Well-known brand accessories, such as SKF bearings and Siemens motors, can work for a long time, saving the trouble of changing accessories frequently.
9. With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.
Application Areas:
This PNMP PVC plastic pulverizer mill is chiefly designed to grind PVC.
