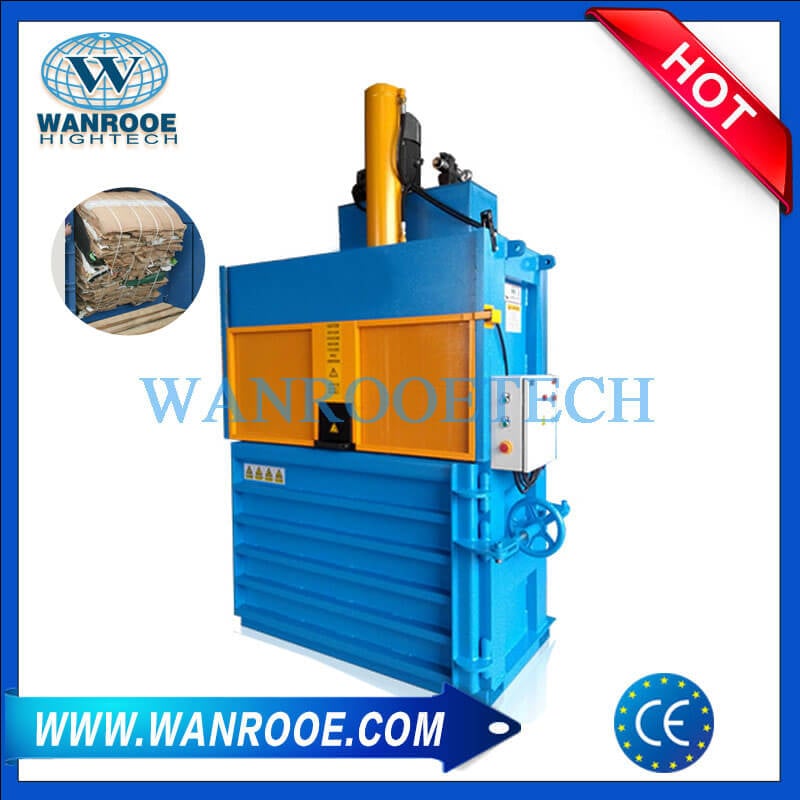

Hydraulic Vertical Waste Paper Cardboard Carton Plastic Film Baler

Hydraulic Vertical Waste Paper Cardboard Carton Plastic Film Baler

Specially designed for recycling waste cardboards, cartons and newspaper etc. with wide feed opening door.
They are hydraulic mill size balers and ideal baling solutions for waste recycling facilities, cardboard/paper manufacturing units, supermarkets, department stores, grocery stores, drug stores, printing facilities, and others that generate massive waste cardboard/paper.

Quantity:

Share this:

Tags: Hydraulic baler plastic film baler

Inquire Download PDF

Product Description
Parameter

Usage:

The hydraulic rolling mill size baler designed specifically for recycling waste cardboard, cardboard boxes, newspapers, etc., with its wide feed door opening, has become an ideal packaging solution for waste recycling facilities, cardboard/paper manufacturing units, supermarkets, department stores, grocery stores, pharmacies, printing facilities, and other places that generate large amounts of waste cardboard/paper.

Plastic Film Baler,Paper Baler,Cardboard Baler,Carton Baler,Vertical Baler,Hydraulic Baler

Features:

Automatic chain bale ejector for quickly and easily ejecting the bales out from the machine

Wide feed opening door lifts upwards automatically when the platen goes up

The ram will stop running downwards when the feeding gate is opened which ensure the safety of the operation

Equipped with independent emergency stop for safe operation

Equipped with Euro and U.S. standard anti-rebound gate structure which makes sure the safety of operation

Special ram guides design makes the platen not slope because of uneven materials feedings during compression

Equipped with NOK seals that from Japan means longer lifespan of the seals

Equipped with A.M.C oil pipe joints that from Japan ensure the machine far away from oil leakage problems

Equipped with superimposed valves that from Taiwan, less space required for the installation

Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentricity, which replacing the common coupling connection so that extend the lifespan of the pump

Technical Specifications：

Model	PNDB-300LE11070	PNDB-400LE12080	PNDB-500LE15076	PNDB-600LE180100
Pressure	30tons	40 tons	50tons	60tons
Feeding Opening Size (L*H)	1100*500mm	1200*500mm	1500*500mm	1800*500mm
Baling chamber Height	1400mm	1500mm	1500mm	1600mm
Bale Size (LWH, H is adjustable)	1100700(500-900)mm	1200800(600-1000)mm	1500760(600-1000)mm	18001000(350-1050)mm
Bale Weight	150-250kgs	200-400kgs	300-500kgs	250-700kgs
Power	5.5kw	7.5kw	7.5kw	11kw
Weight	1900kgs	2200kgs	2800kgs	3500kgs
Overall Dimensions	150010502900mm	160011503000mm	200011503100mm	226013503520mm
