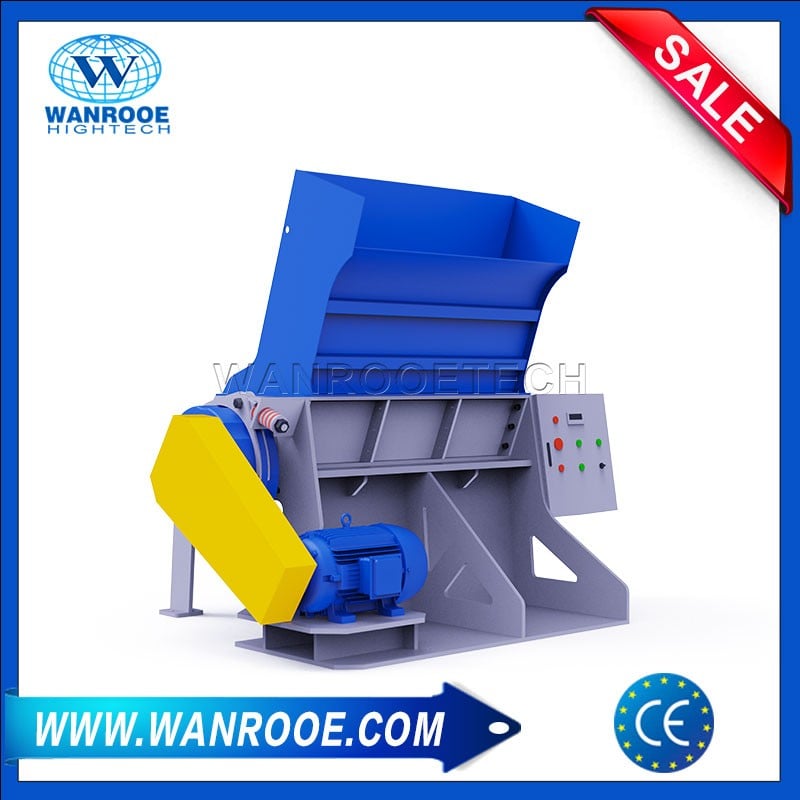

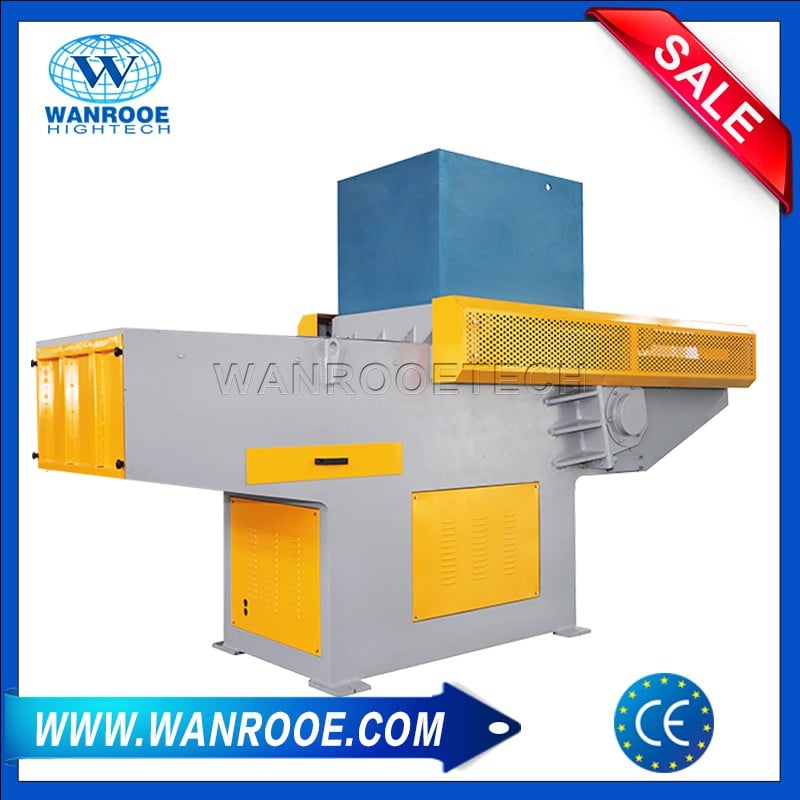

Single Shaft Shredder Machine Single Shaft Shredder Machine

Single shaft shredder uses the interaction of movable cutter heads and fixed knives to tear, cut and extrude the material into small size. It can be available for shredding a wide range of materials including plastic, wood, rubber, and paper etc. The cutter head is consists of basic shaft and pieces of quadrangle cutter. There are four edges which are easy to change. ‘V’ shaped rotary cutters are fixed on single shaft.

Quantity:
Share this:
  • Product Description
  • Video
  • Parameter

Single Shaft Shredder Machine Description:

Single shaft shredder uses the interaction of movable cutter heads and fixed knives to tear, cut and extrude the material into small size. It can be available for shredding a wide range of materials including plastic, wood, rubber, and paper, etc. The cutter head is consists of basic shaft and pieces of quadrangle cutter. Four edges are easy to change. 'V' shaped rotary cutters are fixed on a single shaft. The fixed cutter is mounted at an angle adjacent to the rotary cutter to achieve better cutting. The material is grabbed between 'V' shaped rotary cutters and fixed cutter shreds repeatedly. During the grinding process, the evenly cutting, saving of energy and reducing of noise are ensured by the installation of 'V' shape rotor knives. Also, the knives are very easy to install and remove.


Single Shaft Shredder 'V' shaped blade:

Single Shaft Shredder 'V' shaped blade

Single Shaft Shredder Machine Working principle:

The motor drives the shaft to make a knife rotates in high speed, the material is put to between the knife shaft and fixed knife, the materials are a shredder, the qualified size will discharge from the screen mesh, the oversize material will be sent back for re shredding. The final product size can be adjusted by changing the final product size.


Single Shaft Shredder Machine Parts:

single shaft shredder pusher systemHeat treated rotor knives

Pusher System

Reinforced baseplate can reduce the impact caused by material entering the cutting chamber. A dust collection device is equipped at the bottom of the pusher system to guarantee the long-term stable performance of internal components.

Heat treated rotor knives

Special DC53 steel (hardened) four edges use before the replacement

V-cutting rotor design

Wear Resistant

V-cutting rotor design

with staggered cutter positioning

Wear Resistant

Tungsten surface coating for abrasive applications

Control panel
Screen Unit

Control panel

Equipped with independent and reliable electrical control panel like SIEMENS PLC control system, DELIXI contactor, SCHNEIDER Electric, etc.

Manual & automatic operational modes to choose, quite flexible and safe.Motor overload protection.


Screen Unit

Wide range of screens with a variety of configurations and mesh sizes are replaceable based on customers' production requirements. The paper shredder will automatically stop while opening the screen unit to ensure operator safety. The screen is produced and mounted in sections, allow for easy maintenance.

PLC controlHydraulic Station

PLC control

Making it easier for fault diagnosis and maintenance.

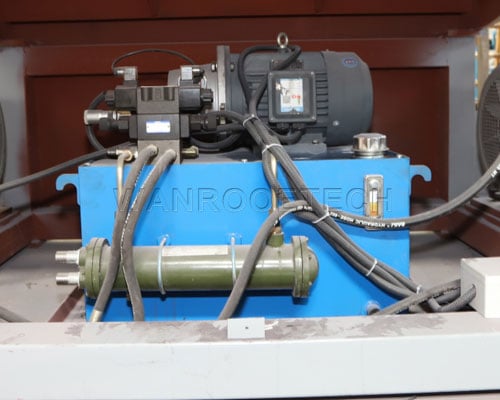

Hydraulic Station

The pressure and rate of flow can be adjusted according to different materials.


Single Shaft Shredder Machine Features:

Design of external bearing is waterproof and dustproof, which prolong the service life of the bearing.

The blade uses cold working die steel, has good strength, high toughness, and high cutting performance.

The blade has four cutting edges, they can rotate 90° after wear and continue to use.

Hardened reducer has high transmission efficiency, strong bearing capacity, and low noise.

GL series single shaft shredding machine is controlled automatically by microcomputer (PLC), it has the function of starting, stopping, reversing and overloading automatic inversion control when.

The minimum material size of discharging is 20mm, each type of feed bucket can be provided according to the demand of the customer.


Single Shaft Shredder Machine Application Areas:

The single-shaft shredder is used to recycle plastic, paper, wood, fiber, cable, rubber, home appliance, light steel, municipal solid waste, etc. It is ideally suited for the reduction of a wide range of different materials:

•refuse-derived fuel: straw, municipal solid waste;

•Textile: cloth fiber, nylon;

•Paper: industrial waste paper, packing paper, cardboard paper;

•Cable wires: copper core cable, aluminum cable, composite cables;

•Polypropylene pipe, industrial packaging & plastic films, PP woven bags;

•Plastic: plastic block, plastic sheets, PET bottle, plastics pipe, plastic container, plastic drums;


single-shredder-application


Waste Wood Shredder, MDF Plywood board shredder, Wood Pallet Shredder, Wood shredder machine, wood shredder machine price

ModelPNDS-600APNDS-800APNDS-1000APNDS-1200APNDS-1500A
Dimension L*W*H(mm)2455×1478×17002825×1747×18752825×2004×18752825×2564×18752825×2964×1935
Cutting Chamber C/D(mm)1200×6001410×8001410×10001410×12001410×1500
Main Powerkw)15-2230-4537-5555-9075-132
Hydraulic Power(kw)2,2345.55.5
Shredding Diameter(mm)320400400400480
Shredding Rotor Length(mm)600800100012001500
Rotating&Fixing Blades QTY(psc)32+2×238+2×258+2×295+2×3110+2×3
End Plastic Scraps Size(mm)30-5030-5030-5030-5030-50
×
