PP PE Plastic Film Woven Bag Double Single Shaft Shredder Machine PP PE Plastic Film Woven Bag Double Single Shaft Shredder Machine

WANROOETECH Double Single Shaft Shredder is aslo popular as two-motor single rotor shredder or dual-motor one shaft shredder. It is a multi-purpose shredding machine which can be available for shredding a wide range of material including plastic, rubber, wood, paper and animal bone etc. Designed with a high-speed rotary cutter along with a hydraulic-driven movable press-plate of cutter, this industrial shredder makes the shredding job done in a super efficient and effective way. The rotary cutter is reversible and controlled by PLC system, which well protects the shredding equipment when some stubborn material gets stuck in the shredding chamber.

Quantity:
Share this:
  • Product Description
  • Video
  • Parameter

Application :

PP PE Plastic Film Woven Bag Double Single Shaft Shredder Machine is suited for shopping bags, garment bag, plastic bag, food bag/wrap, bubble wrap, pallet wrap, shrink wrap, paper towel and toilet paper overwrap, air packs (from shipped packages), agricultural film, industrial film, BOPP plastic film, printed film, woven bag, tons bag, jumbo bag, raffia bag, Big Bag, Raffia Big Bag, Bulk Bag, etc.

Double Single Shaft Shredder application

Description:

Size reduction for molding plastic, purgings, cardboard, wood, E-waste, etc.

WANROOETECH Dual-motor Single Shaft Shredder is also popular as a two-motor single rotor shredder or dual-motor one shaft shredder. It is a multi-purpose shredding machine which can be available for shredding a wide range of material including plastic, rubber, wood, paper and animal bone, etc. Designed with a high-speed rotary cutter along with a hydraulic-driven movable press-plate of the cutter, this industrial shredder makes the shredding job done in a super-efficient and effective way. The rotary cutter is reversible and controlled by the PLC system, which well protects the shredding equipment when some stubborn material gets stuck in the shredding chamber. The operation of this single shaft shredder for sale is straight-forward, just pressing the buttons on the control panel to control every movement. And "auto mode" can be available on the control panel for automatic operation to increase working efficiency and meanwhile save labor.

The double-roller shredder of WANROOETECH is designed and manufactured for recycling a wide range of waste materials, for example, plastic, rubber, paper, wood, etc. Espeicalaly, it has a higher working efficiency for films and woven bags than the double-shaft shredder. But It is different from the double-shaft shredder because it has the same rotor and blades as a single-shaft shredder.

By different requirements such as the input and output size of the material, capacity, etc, WANROOETECH can work out the best suitable proposal to meet our customer's request.

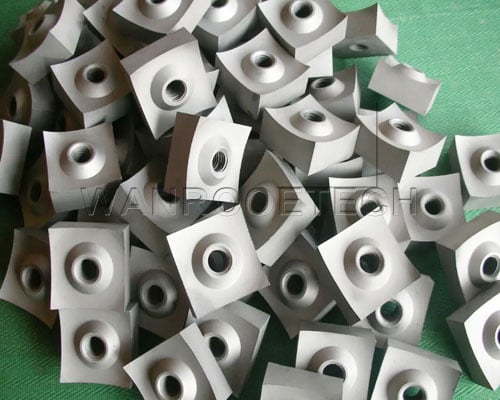

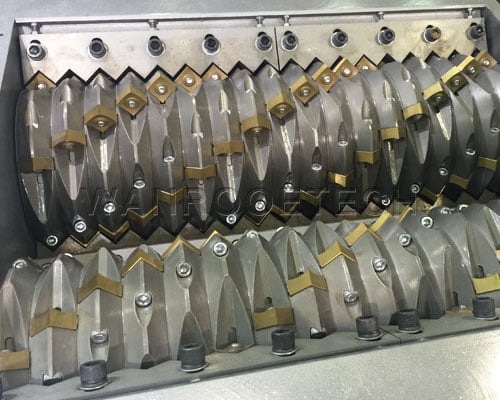

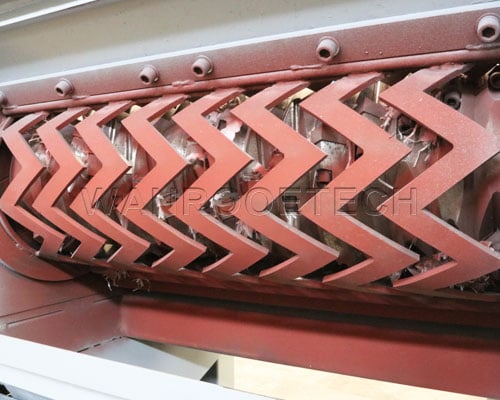

Double Single Shaft Shredder blade :

Double Single Shaft Shredder blade

Working principle:

Double Single Shaft Shredder use dual-motor to drive dual-gearbox, turn high rotate speed of the electric motors into the low rotate speed of cutter rollers by gearboxes, then cutting, squeezing, and tearing big materials, shred them into small broken pieces.

The rotate speed of the cutter roller is nearly 10-25RPM. The low rotate speed with high torque force. And the materials of cutters are high-quality alloy steel with good abrasion resistance.


Features:

Big-volume hopper

For efficient feeding and applicable to be connected with an in-feed conveyor

The replaceable screen at the outlet

For controlling shreds under required size. Size of the screen hole is customizable

Hydraulic-driven press plate

To tightly hold the objects close to the rotary cutters for efficient shredding

Owns both rotating cutters and stationery cutters

For effective shredding. Easy maintenance.

PLC control

Making it easier for fault diagnosis and maintenance

Cooling system

For effectively cooling down oil temperature in high ambient temperature so as to protect machine Dual motor design

For increasing the output

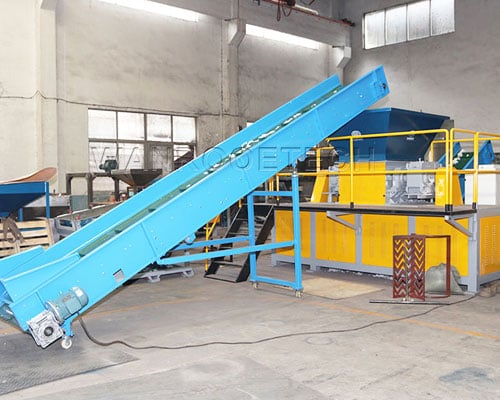

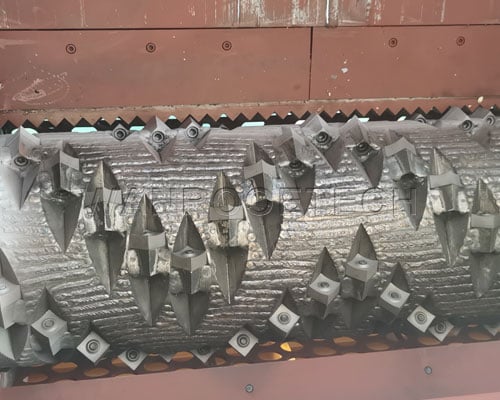

Components:

Double Single Shaft Shredder components


SpecificationPNDS-600DPNDS-800DPNDS-1000DPNDS-1200DPNDS-1500D
Shredder Diametermm300400400400400
Rotating&Fixed Blades QTY60+478+496+4102+4132+6
Capacitykg/h)450700100012001500
Main Motor Power(KW)22x230x245x255x275x2
×
