PE LLDPE LDPE HDPE Dip Powder Plastic Pulverizer Description:
The disc grinding pulverizer machine of the PNMF series are available with disc diameter from 300 to 800 mm. These plastic pulverizer machines are high speed, precision grinders for the processing of medium-hard, impact resistant and friable materials. The material to be pulverized is introduced through the center of a vertically fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system. Depending on the application, the machines can be equipped with one piece of grinding discs or grinding segments.
The plastic pulverizer machine is mainly composed of the electric motor, disc type blade, feeding fan, vibrating sieve, dust removing system, etc.
According to the customer's needs, you can choose some accessories, such as a converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc.
PE LLDPE LDPE HDPE Dip Powder Plastic Pulverizer Process :
Dip plastic powder coating is also known as plastic coating, hot-dip, hot plastic coating. Dip (plastic) is a plastic coating process. According to the different raw materials used in dipping, it can be pided into the liquid dip (paint) and powder dip (paint) plastic. Dip products have been widely used in various aspects of domestic and foreign production and life, such as clothes hangers, pliers, scissors sleeves, water valve wrenches and so on.

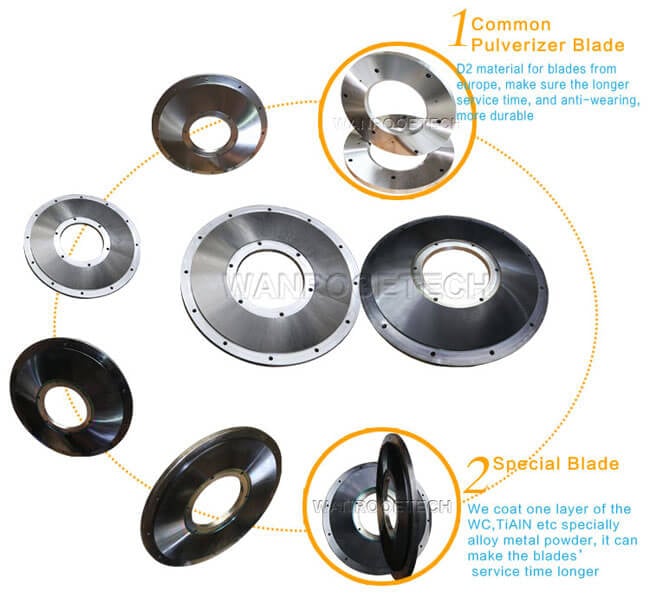

PE, LLDPE, LDPE, HDPE Dip Powder Plastic Pulverizer blade:
PE, LLDPE, LDPE, HDPE Dip Powder Plastic Pulverizer machine components:
PE LLDPE LDPE HDPE Dip Powder Plastic Pulverizer Technical Features:
1. Full automation, unattended, fewer people, saving labor!
2. Dust-free, avoid dust interference workshop!
3. High yield, 2000-3000kg/h
4. HMI touch screen control system, one key start, fault alarm, fault diagnosis, PC monitoring!
5. Feeding system and powder collection system and mill system separation design.
6. Vacuum system automatically feeding, grinding, vacuum system automatically collects materials, the bin can be placed in a distant room or workshop!
7. More mills can also be integrated together!
PE LLDPE LDPE HDPE Dip Powder Plastic Pulverizer Application Areas:
The PNMF series automatic PE LLDPE plastic pulverizer is a disk-type plastic pulverizer, which has the advantages of high capacity and low-power, This machine can be used for powder processing of PE, HDPE, PP, PS, ABS, EVA, PET, nylon and other materials.
PNMF series plastic pulverizers can process powder sizes up to 20-120 mesh.
