PP PE PPR ABS HDPE LDPE Plastic Extruder Machine PP PE PPR ABS HDPE LDPE Plastic Extruder Machine

PP PE PPR ABS HDPE LDPE Plastic Extruder Machine can process all kinds of plastics products with auxiliary machines concerned, such as film, pipe, stick, plate, thread, ribbon, insulating layer of cable, hollow products and so on. It is also used in graining. The machine design is advanced, production capacity is high, plasticization is good, and the energy consumption is low. The extruder adopts a hard gear surface for transmission. It has advantages of low noise, smooth operation, large loading, long use-life and so on.

Quantity:
Share this:
  • Product Description
  • Video
  • Parameter

Description:

PP PE PPR ABS HDPE LDPE Plastic Extruder Machine can process all kinds of plastics products with auxiliary machines concerned, such as film, pipe, stick, plate, thread, ribbon, insulating layer of cable, hollow products and so on. It is also used in graining. The machine design is advanced, production capacity is high, plasticization is good, and the energy consumption is low. The extruder adopts a hard gear surface for transmission. It has advantages of low noise, smooth operation, large loading, long use-life and so on.

Plastic Extruder Machine,Single Screw Extrusion,Single Screw Extruder,Plastic Pipe Extrusion,Plastic Extrusion machine

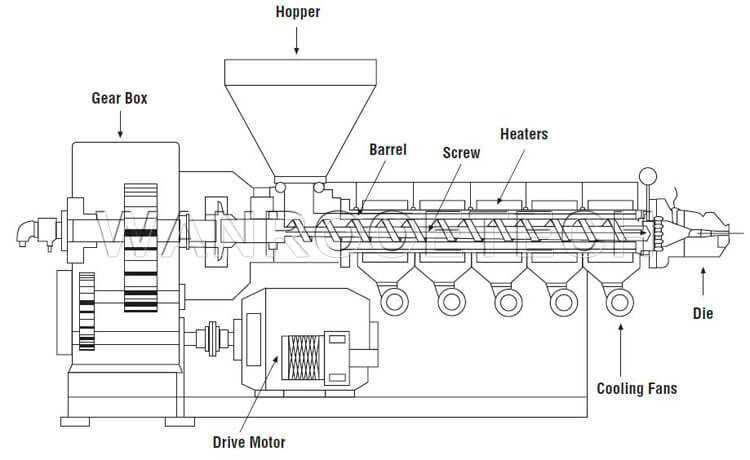

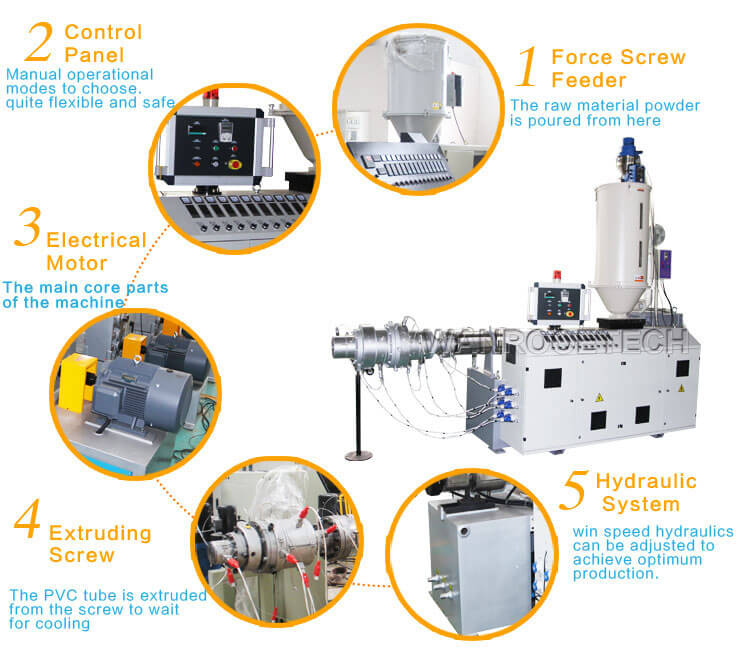

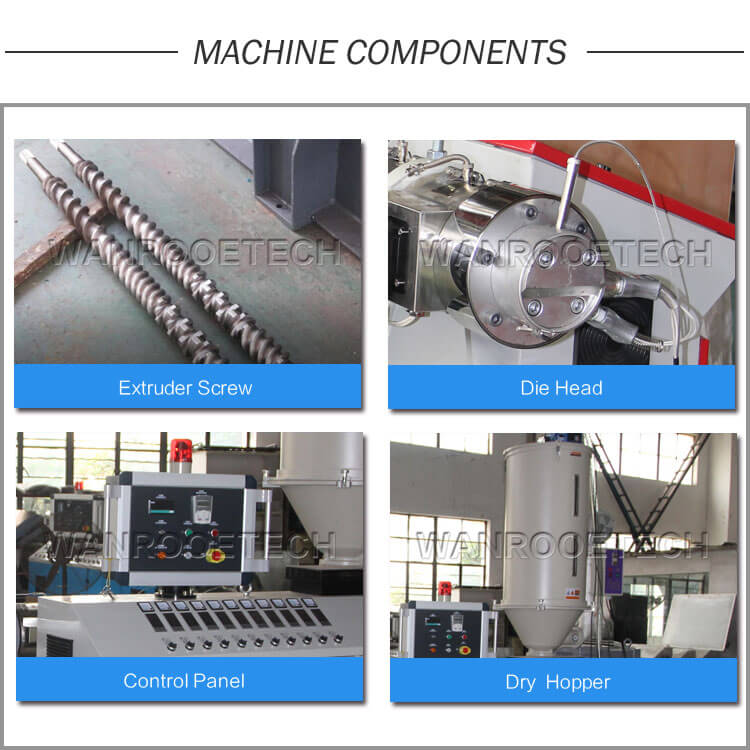

Components:

Plastic Extruder Machine,Single Screw Extrusion,Single Screw Extruder,Plastic Pipe Extrusion,Plastic Extrusion machine


Feature :

1. Adopt the single screw extruder, and mainly used in extruding PE, PP, ABS, PS, PC, and so on

2. The extruder using the special designed single screw making the product forming well.

3. Screw material: High-quality alloy steel-38GrMoAlA, after high-temperature nitriding, nitriding depth: 0.5-07mm, the surface hardness HV740-940.

4. Barrel temperature control though two sections, the cast aluminum ring heater provide the hot temperature while the cooling fan with the help of air control the temperature zone.

5. The reduction box adopts the Germany technical which has a long life span, low noise and lowers hot.

6. The control panel: AC/DC motor, SIEMENS Contactor

Plastic Extruder Machine,Single Screw Extrusion,Single Screw Extruder,Plastic Pipe Extrusion,Plastic Extrusion machine

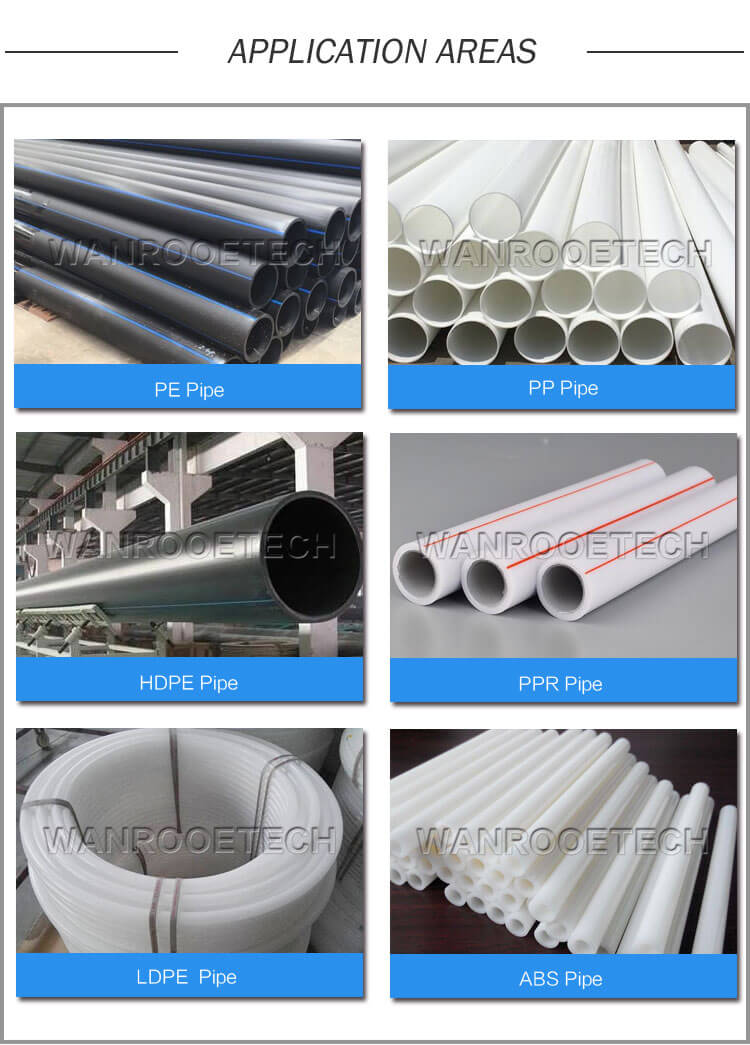

Application Areas:

single screw extruder is mainly used to process PE, PP, PPR, PET, ABS, HDPE, LDPE, LLDPE and other plastics. Equipped with auxiliary machines, it can manufacture pipes, profiles , sheets, film, granulates and other plastic products.

Plastic Extruder Machine,Single Screw Extrusion,Single Screw Extruder,Plastic Pipe Extrusion,Plastic Extrusion machine


Model

L/D

Output(kg/h)

Speed(r/min)

Drive power(kw)

SJ-25

25/1

5

20-120

2.2

SJ-30

25/1

10

20-180

5.5

SJ-45

25-33/1

50-150

20-150

7.5-22

SJ-65

25-33/1

60-250

20-150

22-90

SJ-75

25-33/1

200-350

20-150

55-110

SJ-90

25-33/1

180-550

20-110

37-185

SJ-120

25-33/1

320-800

20-90

75-280

SJ-150

25-33/1

400-1200

20-75

90-355




×
