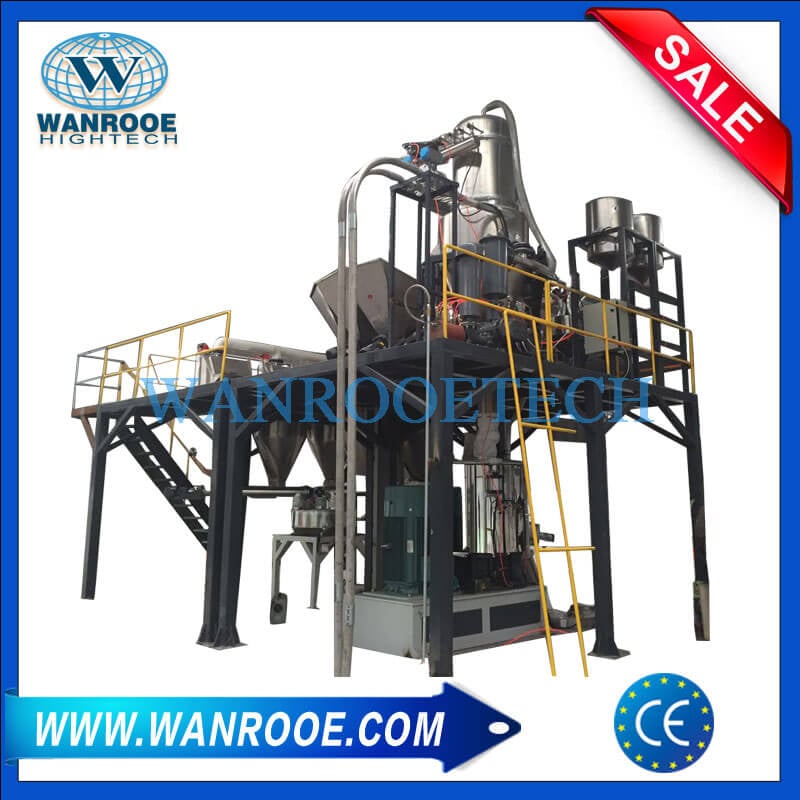

PVC Automatic Compounding Production Line PVC Automatic Compounding Production Line

Mainly Include Following Process of PVC Automatic Compounding Production Line:
1. PVC resin weighing system
2. Additives weighing
3. Little material weighing
4. Liquid material feeding
5. Mixing
6. Storing and conveying system

Quantity:
Share this:
  • Product Description
  • Video
  • Parameter

Description:

PVC Automatic Compounding Production Line Mainly used for PVC powder material conveying, negative pressure, positive pressure can be used (dilute phase, dense phase), metering (man material, additives), mixing, centralized storage; according to situation on-site, the pipe chain, negative pressure or screw conveying can be used, the material is assigned to each machine hopper. The whole process is centrally controlled by PLC and centralized monitoring on the host computer.

The mixing system includes conveying, dosing and mixing PVC,caco3, other additives to make pipe, sheet, WPC, etc.



Features :

1. Adopting full computer control system which combined engineering control PC machine and PLC, completing overall automatic control, depositing multiple directions,

production statistic, random print, dynamic supervision, fault alarm, multiple password protection and so on.

2. Adopting America Toly multiple-threaded pipe metering transducer and control instrument with dynamic precision is ±0.5-1kg

3. Adopting special anti-stick coating and balancing structure metering screw, eliminating the effects which affecting metering precision

4. Adopting special airbag discharging equipment

5. Adopting system pressure balanced centralized dust collecting system

6. Full closed material convey system, preventing secondary pollution and environmental pollution of material

7. Multiple systems model, adapting various workshop conditions



Mainly Include Following Process of PVC Automatic Compounding Production Line:

1. PVC resin weighing system

2. Additives weighing

3. Little material weighing

4. Liquid material feeding

5. Mixing

6. Storing and conveying system


ModelSHR-100ASHR-200ASHR-300ASHR-500ASHR-800ASHR-1000A
Total Cubage (L)1002003005008001000
Effective Cubage (L)75150225375600750
Discharging ModePneumatic
Heating ModeSelf-friction/electric heating
Mixed Speed(r/min)650/1300500/1000475/950430/86060/66060/660
Motor Powder(KW)14/2230/4240/5555/75110160



×
