Features:
1.The PP/PE Plastic Agglomerator is used for the fast recycling of waste films, woven bags.
2.The Machine can quickly granulate used thermoplastic film or the thermoplastic products which thickness less than 2mm.
3.It's applicable to the agglomerating of soft polyvinyl chloride, HD/LD polyethylene, polypropylene, polystyrene and other used thermoplastic products or film.

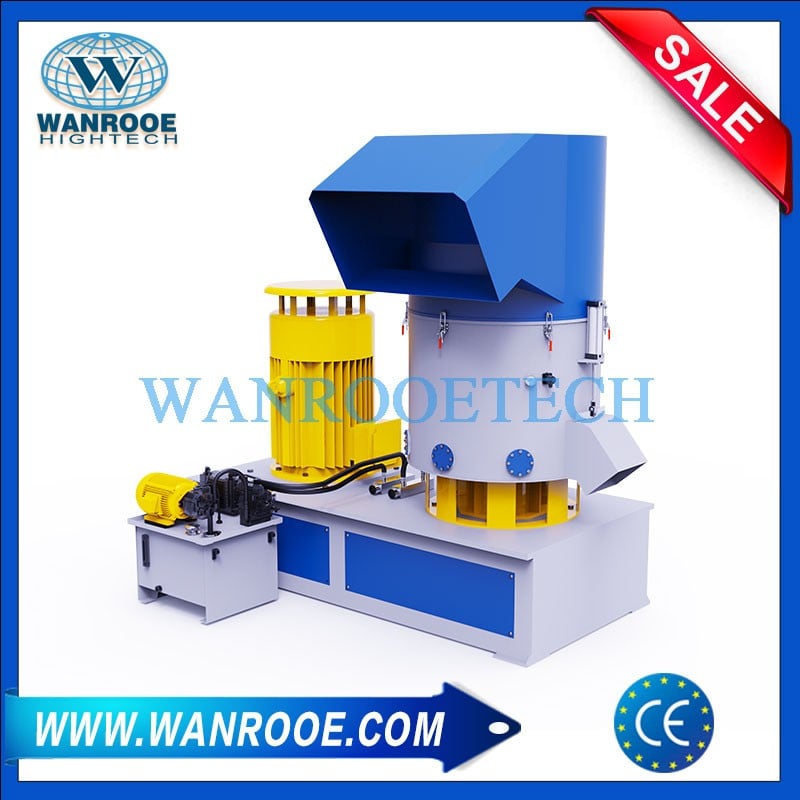

Waste Plastic Film Woven Bags Agglomerator Compactor Machine Description:
The agglomerator (plastic film granulator) is a kind of waste thermoplastic thin films, and wall thickness is less than 2 mm of products can granulate immediately. It can be wastes or thin film of soft polyvinyl chloride (PVC), high and low-pressure polyethylene, polypropylene and polystyrene, other thermoplastic plastic on aggregate, also on foaming polystyrene abandoned products for granulation.
Waste Plastic Agglomerator Compactor Machine Working principle:
Putting the waste into the machine pot body make the material be quickly cut by the high speed rotating turn the blade and the fixed blade shear, then the material along the pot body wall by the knife dish centrifugal force function, at the same time, the material turning up and down by paddle and from all around to move towards to the center of the pot body. The friction of the material itself and friction of pot wall and blades produce much friction heat under the high speed, making the temperature of the material rises to the half-plastic condition and connect to a small lump. Before the materials will block, advanced preparation quantitative water will all spray to the material. The cold water touches the hot materials will gasify and take out the surface heat soon, making the surface of the materials cool quickly and avoid blocking, then after the crushing effect between the rotary blade and fixed blade to cut into particles(irregular size materials). During the crushing, Also may join the appropriate color pigments according to needs.
Waste Plastic Agglomerator Compactor Machine Features:
1. The PP/PE Plastic Agglomerator is used for the fast recycling of waste films, woven bags.
2. The Machine can quickly granulate used thermoplastic film or thermoplastic products which thickness less than 2mm.
3. It's applicable to the agglomeration of soft polyvinyl chloride, HD/LD polyethylene, polypropylene, polystyrene and other used thermoplastic products or film.
4. The granules produced by the plastic agglomerator can be supplied to a pelletizing machine for further granulating or just fed to the extruder and injection machine.
5. It is for augmentation of the bulk density of the LDPE, HDPE, PP, BOPP, PET film & bags flakes.
Special Features:
the strong design of double-bearing for holding the main shaft
high-performance blades
temperature control
water flushing automatically
motor power from 18.5kw to 132kw
processing capacity from 50kg/h to 500kg/h
Waste Plastic Agglomerator Compactor Machine Application areas:

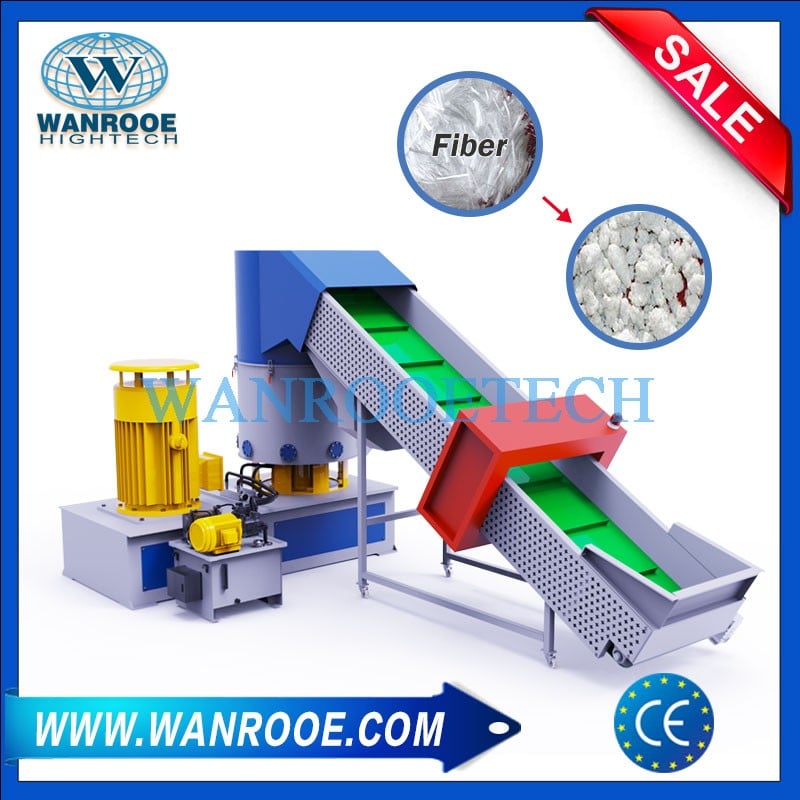

Our plastic agglomerator is used to agglomerate the plastic scrap such as wet or dry recycling plastic films, PET fiber, woven bags, Soft PVC, LDPE, HDPE, PS, PP, foam PS, PET fibers and other thermoplastics, etc.
Model | PNAG-100 | PNAG-200 | PNAG-300 | PNAG-500 | PNAG-600 | PNAG-800 | PNAG-1500 |
Spindle Speed (r/min) | 1050 | 1050 | 950 | 850 | 750 | 750 | 650 |
Output(kg/h) | 80-120 | 100-150 | 150-250 | 300-400 | 350-450 | 500-600 | 800-1000 |
Motor power(kw) | 37 | 45 | 55 | 90 | 110 | 132 | 200 |
Voltage(V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
Volume(L) | 100 | 200 | 300 | 500 | 600 | 800 | 1500 |
Weight(kg) | 1000 | 1200 | 1800 | 2500 | 2700 | 3000 | 5000 |
Dimension(m) | 1.7*0.75*1.5 | 1.7*0.85*1.5 | 2*0.85*1.6 | 2.3*0.95*1.7 | 2.3*1.1*1.75 | 2.5*1.25*1.8 | 3*1.6*2.1 |
Rotating Blades Qty(psc) | 2 | 2 | 2 | 4 | 4 | 4 | 4 |
Fixed Blades Qty(psc) | 6 | 6 | 6 | 8 | 8 | 8 | 8 |
Lubrication Method | Grease lubrication | Grease lubrication | Grease lubrication | Pressure lubrication | Pressure lubrication | Pressure lubrication | Pressure lubrication |
Machine Detail Photos:

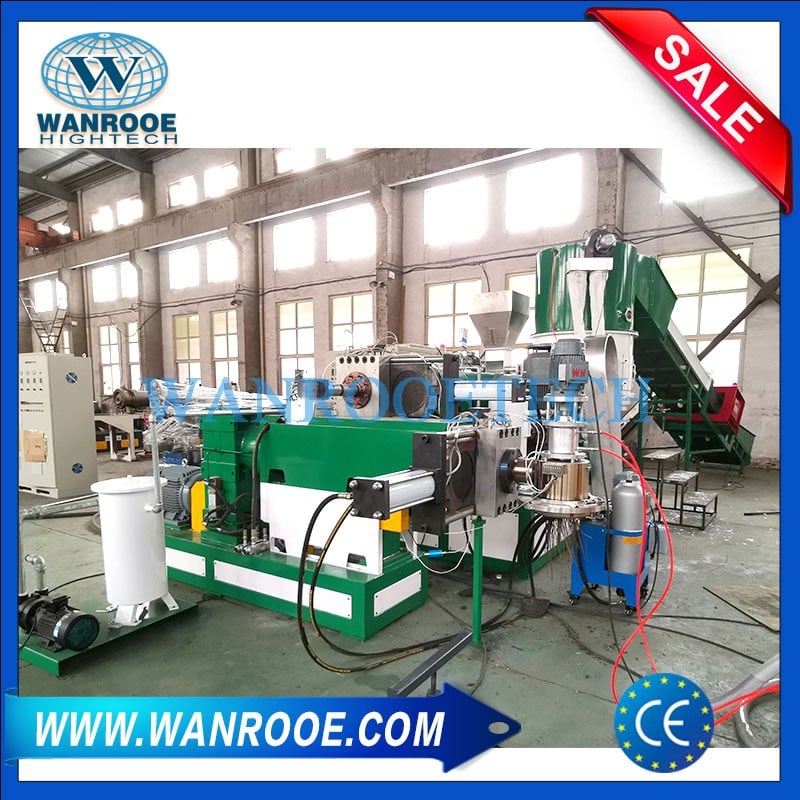

Workshop photos:
