Medical Scraps Bandages Dressing Gloves Needles Shredder Machine Medical Scraps Bandages Dressing Gloves Needles Shredder Machine

Medical Scraps Shredder Machine has been designed for a wide array of applications and industries, suitable for shredding solid material such as human or animal tissue, used bandages and dressings, discarded gloves, used needles, scalpels, lancets, infectious waste like bandages, swabs, syringes, red bags and surgical blades & knives; pharmaceutical waste like the expired or unused medicines, etc.

Quantity:
Share this:
  • Product Description
  • Video
  • Parameter

Medical Scraps Bandages Dressing Gloves Needles Shredder Machine Application Areas:

Medical Scraps Shredder Machine has been designed for a wide array of applications and industries, suitable for shredding solid material such as human or animal tissue, used bandages and dressings, discarded gloves, used needles, scalpels, lancets, infectious waste like bandages, swabs, syringes, red bags and surgical blades & knives; pharmaceutical waste like the expired or unused medicines, etc.

Medical Scraps Bandages Dressing Gloves Needles Shredder Machine Application

Medical Scraps Shredder Machine Description:

WANROOETECH offers a series standard model and customized model industrial medical waste shredder with capacity range from 200 kg/hr to 10 tons/hr. Slow speed, high torque medical waste shredders easily reduce the toughest medical grade materials ranging from fabrics to glass, such as soiled dressings, surgical gowns, liquid medicine bottles, plastics and stainless steel instruments, such as saline bottles, blood bags, packaging and sharps and more. Shredding medical waste in preparation for landfill disposal is a critical part of medical waste processing, our powerful industrial medical waste shredder can accept single bag processing to high volume autoclave cart batch loading and shred the medical waste to a non-reusable and unrecognizable state, the sterilized and shredded medical waste can be used either as a substitute fuel or disposed of together with municipal solid waste.


Medical Scraps Shredder Machine Components:

double shaft shredder chassis

Shredder spindle

Shredder Chassis
The whole chassis is made of welded steel plate and finely machined by CNC gantry milling, which has high bearing capacity, high impact resistance and more stable quality.

Shredder Spindle
The shredder spindle is made of high alloy, forged and heat-treated and tempered as a whole, and then machined into hexagonal, octagonal and spline form by CNC gantry milling after fine turning, with long service life.

double shaft shredder bladeSegmented Blades

Shredder Blade
The shredder blade is made of special steel, forged, faded, refined, vacuum heat treatment, computerized wire cutting, CNC grinding machine processing.

Segmented Blades
The segmented blade design can greatly reduce the blade changing time and cost. The blade comprises of the blade holder, and two types of blade segments, with and without hooks. Worn blade segments can quickly and easily be removed and replaced by simply removing the securing screws.

MotorPlanetary reducer

Motor

The motor adopts Siemens, Wanan and other domestic brands of pure copper motor, with stable and reliable quality, and can be customized according to requirements.

Planetary Reducer
The reducer chassis adopts welded box, helical gear, planetary gear transmission, with small volume, low noise, high torque and other characteristics, higher transmission efficiency.

Automatic-Loading-Device.jpgdouble shaft shredder electronic control.jpg

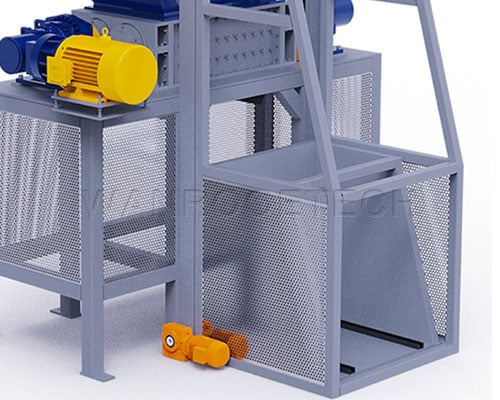

Automatic Loading Device

Can be used to replace the conveyor belt, just push the garbage cans that put medical waste, to the snap position, both can realize automatic loading. Significantly simplifies manual work. It can be used in the occasions where the materials are not suitable for direct contact.

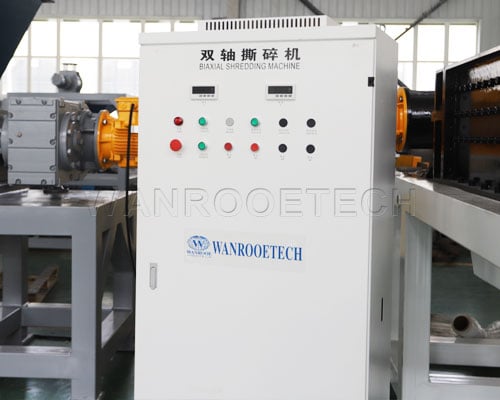

Control panel

Equipped with independent and reliable electrical control panel like SIEMENS PLC control system, DELIXI contactor, SCHNEIDER Electric, etc.

Manual & automatic operational modes to choose, quite flexible and safe.Motor overload protection.




Medical Scraps Shredder Machine Feature:

♦ Automatic feeding devices can prevent infection caused by direct contact between human and medical waste

♦ Overload protection with an automatic reversal to clear itself and then continues the shredding process automatically.

♦ Advanced bearing protection system to prevent the water go inside.

♦ Severe Shock Protection-Cushion drive system absorbs minor shock loads

♦ High hardness and toughness alloy steel blades with wear resistance and impact resistance

♦ Automatically bearing lubrication system.

♦ Currents detection ammeter helps you to inspect the shredder working.

♦ Available for batch loading, high capacity range from 200 kg/hr to 10 tons/hr.


ModelShredder Motor PowerShredding Chamber Size
PNSS-3005.5510×300
PNSS-4007.5510×400
PNSS-6007.5+7.5510×600
PNSS-80011+11600×800
PNSS-100018.5+18.5800×1000


×
