Industrial Waste Paper Tube Cardboard Carton Box Newspaper Book Corrugated Shredder Industrial Waste Paper Tube Cardboard Carton Box Newspaper Book Corrugated Shredder

This Waste Paper Cardboard Shredder, Carton Shredder, Box Shredder, Single shaft shredder have been designed for a wide range of applications and industries such as pallets and big barrels in mind, house and general recycling, electronic waste, While it can be used for in house recycling in big volume blow molding operations; additionally, it is also versatile enough to be used for general recycling in the plastic and wood industry.

Quantity:
Share this:
  • Product Description
  • Video
  • Parameter

Industrial Waste Paper Tube Cardboard Shredder Application Areas:

paper, paper tube, corrugated, cardboard, paper box, books, newspaper, carton, cardboard, and much more.

Cardboard Shredder,  Carton Shredder,  Box Shredder,  Industrial Paper Shredder,  Paper Tube Shredder


Industrial Waste Paper Tube Cardboard Shredder Description:

Industrial Waste Paper Tube Cardboard Carton Box Newspaper Book Corrugated Shredder have been designed for a wide range of applications and industries such as pallets and big barrels in mind, house and general recycling, electronic waste, While it can be used for in house recycling in big volume blow molding operations; additionally, it is also versatile enough to be used for general recycling in the plastic and wood industry. According to customers' requirement, the PNDS B series shredder can work with WANROOETECH's crusher machine for next step of size reduction.

This single shaft plastic shredder machine is newly designed especially for shredding various big solid materials, unmanageable materials, plastic containers and barrel, plastic film, plastic pipe, fiber and paper which the normal crusher can't handle.

The materials are pushed into the shredding chamber by hydraulic. An independent drive system and solid structure make the running stably.

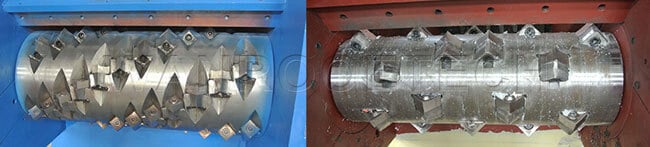

Single shaft shredder Blade:

Single shaft shredder Blade

Industrial Waste Paper Tube Cardboard Shredder Components:

single shaft shredder pusher systemHeat treated rotor knives

Pusher System

Reinforced baseplate can reduce the impact caused by material entering the cutting chamber. A dust collection device is equipped at the bottom of the pusher system to guarantee the long-term stable performance of internal components.

Heat treated rotor knives

Special DC53 steel (hardened) four edges use before the replacement

V-cutting rotor design

Wear Resistant

V-cutting rotor design

with staggered cutter positioning

Wear Resistant

Tungsten surface coating for abrasive applications

Control panel
Screen Unit

Control panel

Equipped with independent and reliable electrical control panel like SIEMENS PLC control system, DELIXI contactor, SCHNEIDER Electric, etc.

Manual & automatic operational modes to choose, quite flexible and safe.Motor overload protection.


Screen Unit

Wide range of screens with a variety of configurations and mesh sizes are replaceable based on customers' production requirements. The paper shredder will automatically stop while opening the screen unit to ensure operator safety. The screen is produced and mounted in sections, allow for easy maintenance.

PLC controlHydraulic Station

PLC control

Making it easier for fault diagnosis and maintenance.

Hydraulic Station

The pressure and rate of flow can be adjusted according to different materials.

Industrial Waste Paper Tube Cardboard Shredder Features:

1)Precisely processed combined frame made of extra-thick plates; Lange-angle, hexagon prism of power slewing axis; Big hopper with big caliber for feeding big material

2)PLC control system with automatic overload protection and auto-reverse switch

3)Unique hydraulic pushing system accelerates the shredding speed, for light material particularly

4)Each dynamic blades has four cutting edges which enable reutilization after being abraded, by rotating 90 degree

5)Each fixed blades has two cutting edges which enable reutilization after being abraded, by rotating 180 degree

6)Quiet operation at low speed

7)Screen perforation is adjustable according to customers' requirement

8)The shredders can be adjusted according to customer-specific requirements for throughput volume, material to be processed, etc.


ModelMain Power(kw)Hydraulic Power(kw)Shredding Diameter(mm)Shredding Rotor Length(mm)Rotating&Fixed Blades QTY (PCS)End Plastic Scrap Size(mm)
PNDS-600A15-222.232060032+2*230-50
PNDS-800A30-45340080038+2*230-50
PNDS-1000A37-554400100058+2*230-50
PNDS-1200A55-905.5400120095+2*330-50
PNDS-1500A75-1325.54801500110+2*330-50
×
