Waste Computer Cell Phone TV Boards Scrap PCB Board E Waste Shredder Machine Waste Computer Cell Phone TV Boards Scrap PCB Board E Waste Shredder Machine

China manufacturer PCB recycling machine from WANROOETECH factory. We produce Computer Board Shredder, Cell Phone Board Shredder, TV Board Shredder, PCB Shredder, E Waste Shredder. high quality, competitive price. Circuit board PCB shredder is the very first machine to size reduce circuit board. Its infeed opening should be big enough to process tons of circuit board at the same time. During shearing and crushing of 2 rotors, circuit boards are broken down into irregular pieces.

Quantity:
Share this:
  • Product Description
  • Parameters
  • Video

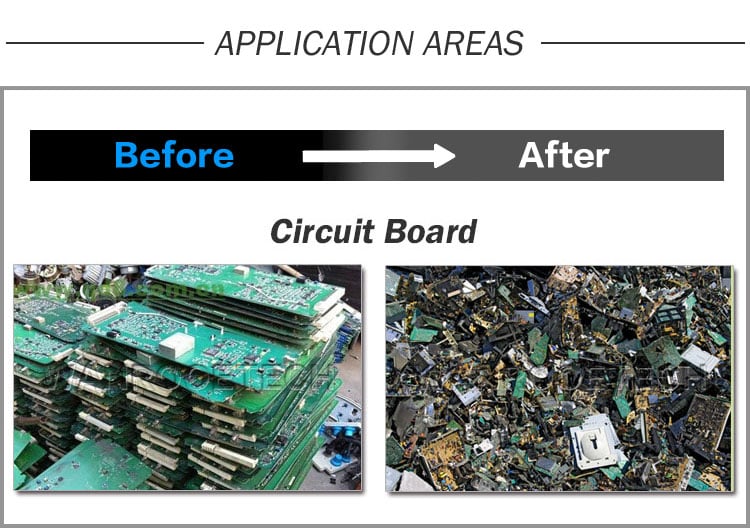

Waste Computer Cell Phone TV Boards Scrap PCB Board E-Waste Shredder Machine Application:

E-Waste Shredder Machine is used to recycle shred all kinds of printed circuit boards, such as computer boards,cell phone boards, TV boards, copper-clad laminate, refrigerator, air conditioner, washing machine, and other household appliances.

Computer Board Shredder, Cell Phone Board Shredder, TV Board Shredder, PCB Shredder, E Waste Shredder

Waste Computer Cell Phone TV Boards Scrap PCB Board E-Waste Shredder Machine Description:

Circuit board PCB shredder is the very first machine to size reduce circuit board. Its infeed opening should be big enough to process tons of circuit board at the same time. During shearing and crushing of 2 rotors, circuit boards are broken down into irregular pieces.

Circuit Board Shredder is a primary machine to break down PBC in circuit board recycling. Worldwide, more than 40 million tons of electrical and electronic waste(WEEE) are generated every year – and the trend is increasing! Almost in each electronic device, there are at least 2 circuit boards regardless of what the device is.

Recycling electronic equipment is not only worthwhile for environmental reasons but also often contains many precious metals that can be recovered in the recycling process.


Double Shaft Shredder Blades:

Double Shaft Shredder Blades

Waste Computer Cell Phone TV Boards Scrap PCB Board E Waste Shredder Machine Components:

double shaft shredder chassis

Shredder spindle

Shredder Chassis

The whole chassis is made of welded steel plate and finely machined by CNC gantry milling, which has high bearing capacity, high impact resistance and more stable quality.

Shredder Spindle

The shredder spindle is made of high alloy, forged and heat-treated and tempered as a whole, and then machined into hexagonal, octagonal and spline form by CNC gantry milling after fine turning, with long service life.

double shaft shredder bladeSegmented Blades

Shredder Blade

The shredder blade is made of special steel, forged, faded, refined, vacuum heat treatment, computerized wire cutting, CNC grinding machine processing.

Segmented Blades

The segmented blade design can greatly reduce the blade changing time and cost. The blade comprises of the blade holder, and two types of blade segments, with and without hooks. Worn blade segments can quickly and easily be removed and replaced by simply removing the securing screws.

Hydraulic Force FeederPlanetary reducer

Hydraulic Force Feeder(optional)

A hydraulic force feeder is available to actively press the input material down into the cutting zone between the two shearing shafts. This holding action prevents material from riding over the blade hooks, thus greatly improving the cutting efficiency and throughput of the machine.

Planetary Reducer

The reducer chassis adopts welded box, helical gear, planetary gear transmission, with small volume, low noise, high torque and other characteristics, higher transmission efficiency.

Motor

Rotary Screen

Motor

The motor adopts Siemens, Wanan and other domestic brands of pure copper motor, with stable and reliable quality, and can be customized according to requirements.

Rotary Screen(optional)

To effectively control the output product size, a circular screen mounted around the cutting chamber is the ideal solution.The rotary screen runs at low speed, the oversized fractions are recirculated back to the cutting chamber for further shredding, whilst the sized fraction falls through the screen to the next process.

Waste Computer Cell Phone TV Boards Scrap PCB Board E Waste Shredder Machine Advantages:

The electronics shredder has been known to be used for efficient waste reduction of the electronic scrap. Additionally, it has the following benefits:

– Reduction of the electronic scrap materials in an effective manner with the use of the most recent technology.

– Recycling of the waste materials to other industries to be used for some other purposes.

– The scrap materials, which are intact, are separated by these machines wisely and are sent for reuse by the industries as the raw materials for the manufacture of electronics products.

– Reducing the pressure on the Earth’s natural resources like minerals, fuel and the raw materials with the concept of recycling and reuse.

– The use of the electronics shredder also offers cost effectiveness as it consumes less fuel and power.


ModelShredder Motor Power(kw)Shredding Chamber Size(mm)
PNSS-3005.5510×300
PNSS-4007.5510×400
PNSS-6007.5+7.5510×600
PNSS-80011+11600×800
PNSS-100018.5+18.5800×1000
PNSS-120030+30/22+221000×1200
PNSS-140045+451400×1200
PNSS-160055+551600×1200
PNSS-180075+751800×1400
PNSS-200090+902000×1400
×
