LDPE HDPE BOPP Film Pelletizing Plastic Granulating Machine Description:
Double stage plastic granulating machine is especially good for the raw material which contains high moisture, high impurities.
The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and contamination;
And the second extruder usually adopts small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.
LDPE HDPE BOPP Film Pelletizing Plastic Granulating Machine Process flow:
Conveying feeding→ Metal detector →Film Agglomerator /Compactor →1# Degassing screw extruder →1# Hydraulic filer exchanger→2# screw extruder →2# Hydraulic filer exchanger→ Mould head →water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hopper→ Finished product packing.
LDPE HDPE BOPP Film Pelletizing Plastic Granulating Machine Components:
|
|

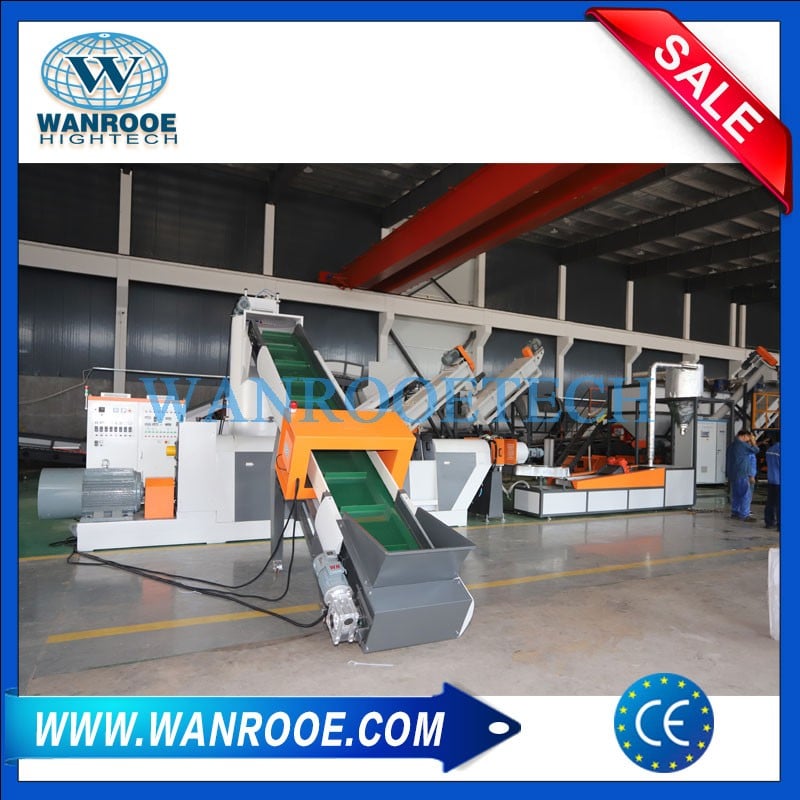

Conveyor (with metal detector) Metal detectors can be combined with belt conveyors, and can interlock with the control system, to warn and stop the system, in case that metal is found in feeding. | Agglomerator Agglomerator combines pre-heating, pre-dry and size reduction to ensure a fast and stable feeding process. |
|
|
First Stage Screw Extruder Our unique design single screw extruder gently plasticizes and homogenizes the materials. Our extruder has great anti-corrosion resistant, wear resistant and long life time. | 1# Full Auto Hydraulic Screen Changer With Double Working Position Filter material impurity, to make production more stable. |
|
|
Second Stage Screw Extruder usually adopts a small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion. | 2# Full Auto Hydraulic Screen Changer With Double Working Position Long screen lifetime, lower screen change frequency: Long filter lifetime owing to large filter areas. Easy to use and none-stop type: easy and quick screen change and do not need to stop the running machine. |
|
|
Water Ring Pelletizing System Cutting the material into pellet. Water ring pelletizing system set as the standard granulating method. self-adjusting pelletizing head for the best granulate quality and long uptime thanks to consistently correct blades pressure. | Dewatering And Air Sending System Centrifugal dryer to get well-dried final granules. |
 |
|
Silo Storage the final pellets in a bag. | Electronic Control The whole model adopts frequency conversion control and conforms to international standards such as CE/CSA. |
Detailed description of each item:
1. Conveyor: convey PP PE film or flakes into the compactor.
2. PE film Agglomerator /Compactor: crushing and compress film, and feed compressed film into extruder forced, to make the production capacity high and stable.
3. 1# Extruding system: plasticizing material and exhausting gas.
4. 1# High speed Net exchanging system: filter material impurity, to make production more stable.
5. 2# Extruding system: plasticizing material.
6. 2# High speed Net exchanging system and Die-head: Second filter material impurity, to make production more stable.
7. water ring pelletizing machine: cutting pellets in water.
8. Water tank: cooling pellets.
9. Dewater machine: make pellets dry.
10. Vibration sieve: remove bad pellet and keep good pellet.
11. Air Blower: convey good pellets into the silo.
12. Storage silo: keep pellet.
Equipment List:
1 | Belt conveyor (can equip the metal detector) |
| 2 | Agglomerator /Compactor machine |
3 | 1# Extruder |
4 | 1# Die head and screen changing device |
| 5 | 2# Extruder |
| 6 | 2# Die head and screen changing device |
| 7 | Water ring cutter |
| 8 | Vibrating screen |
| 9 | Vertical dewatering machine |
| 10 | Air drying system |
| 11 | Cyclone hopper |
LDPE HDPE BOPP Film Pelletizing Plastic Granulating Machine Features :
1. Allow free assembling of the screw component, based on raw material type.
2. Using the suitable die head for palletizing, such as water ring cutting, under-water cutting and hot face cutting.
3. High efficient force feeder ensures stable high capacity material feeding, low power consumption.
4. Main screw has vacuum exhaustion.
5. Water ring granulator machine, attached with dryer.
6. Single screw extruder, with a specially designed screw, barrel, venting system, ensures the good quality of the final products.
7. Pelletizing style: standard cutting with extrusion mould. Even cutting ensures good shape.
LDPE HDPE BOPP Film Pelletizing Plastic Granulating Machine Applications:
Applicable plastic materials: PE, HDPE, LDPE, PP, BOPP, PET, PA/Nylon, etc
Material shapes: film, bag, fiber, rope scrap
Material types: rolls, loose, bundled
Material comes from offcut, industry defective materials, washed materials and printed materials.
Note: depending on different material properties, various downstream equipment is needed.
