Aluminum plastic recycling pulverizer machine is used to all kinds of aluminum-plastic board, waste plastic aluminum, toothpaste tubes, medicine blister packs, medicine capsules plate, pharmaceutical blister foil, aluminum, and plastic boards, various aluminum panels, waste aluminum plastic food bags, milk bags, yogurt foil sealing lids, bottleneck foil lids, aseptic foil lids waste, electrical circuit board, aluminum laminate, aluminum composite panel, aluminum composite pipe, aluminum-plastic board leftover and pieces of aluminum plastic board etc.
Aluminum Plastic Pulverizer Mill Machine Application:
Aluminum plastic recycling pulverizer machine is used to all kinds of aluminum-plastic board, waste plastic aluminum, toothpaste tubes, medicine blister packs, medicine capsules plate, pharmaceutical blister foil, aluminum, and plastic boards, various aluminum panels, waste aluminum plastic food bags, milk bags, yogurt foil sealing lids, bottleneck foil lids, aseptic foil lids waste, electrical circuit board, aluminum laminate, aluminum composite panel, aluminum composite pipe, aluminum-plastic board leftover and pieces of aluminum plastic board etc.
Aluminum Plastic Pulverizer Mill Machine Description:
Aluminum plastic recycling machine is used for recovery of waste aluminum-plastic materials, can put the aluminum and plastic separation,it is mainly used for all kinds of aluminum tubes, aluminum-plastic bottle caps, car ornaments,and other plastic products separation recycling.

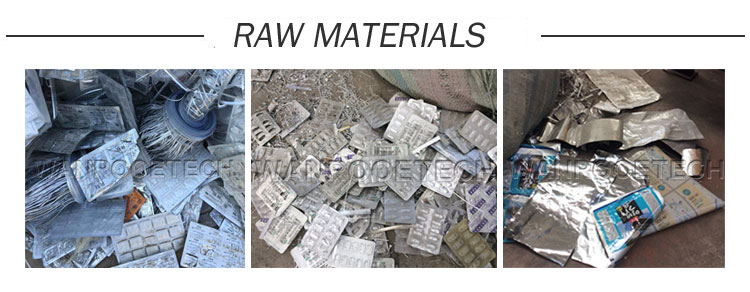

Raw Materials:

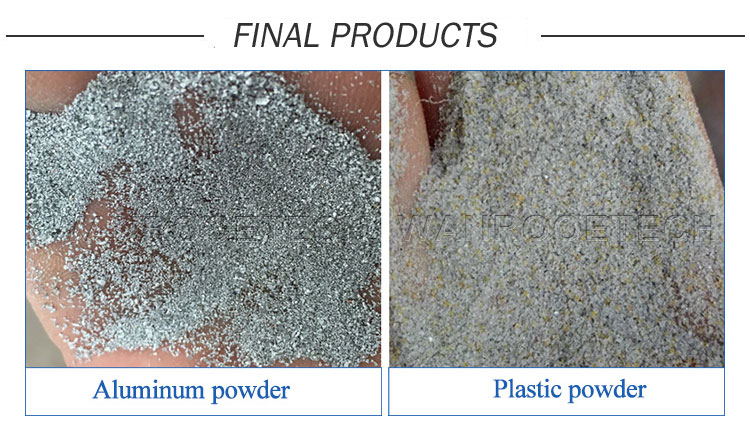

Final products:

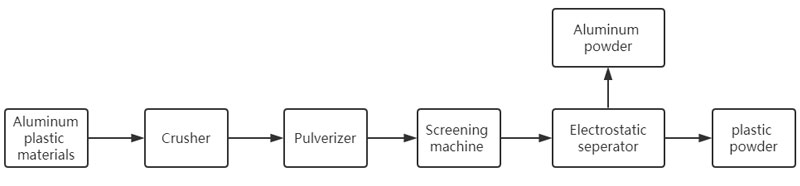

Aluminum Plastic Pulverizer Mill Machine System Process:
Firstly, by hook the car send a lot of materials into crusher, repass secondary crushing and tertiary grinding powder decomposition, and then through the sieve after the decomposition of the finished material through six roller electric machine one-time separation, separation of plastic and metal.
Aluminum Plastic Pulverizer Mill Machine Main characteristics:
1. All the process is physical separation, without heating, burning, water and chemical, so it is environmental protection and no pollution.
2. The process low cost, high efficiency and separation rate can be reached 99.8%.
3. The production line is automatic, saving labor; just one or two person is enough for operating machine.
4. This production line is used widely.
5. Production line installation is convenient, has a variety of assembly method, can adapt to different venues.
Model | PNMP-500 | PNMP-600 | PNMP-800 | PNMP-1000 |
Disc Diameter (mm) | 500 | 600 | 800 | 1000 |
Main Motor Power(kw) | 37 | 55 | 75 | 110 |
Vibrating Sieve Power(kw) | 0.75 | 0.75 | 0.75 | 1.1 |
Capacity(kg/h) | 100-300 | 200-500 | 300-800 | 400-900 |
Dimension L*W*H(mm) | 3500x1300x3700 | 3700x1450x3700 | 4300x1700x4000 | 5000x2000x4300 |
