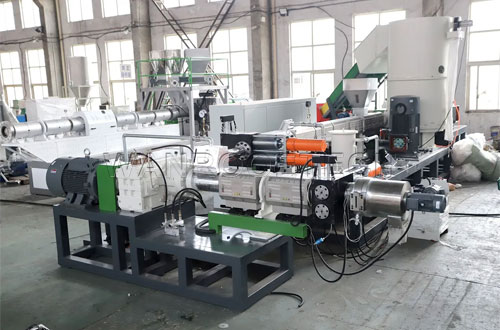

Waste Plastic PP PE Pelletizing Machine

Waste Plastic PP PE Pelletizing Machine Description:
PP PE plastic film is one kind of common recycling material, our pp pe plastic pelletizer solution is efficient and environmentally friendly, including compacting, plasticization, pelletizing and drying. PLC intelligent system realized high automatic, the whole line just needs 2-3 man to operate. With 20 years of experience in recycling, WANROOETECH not only mastered the key technology but also improved machine designs to address specific product features. WANROOETECH offers recycling solutions that are high output and low energy consumption.

Waste Plastic PP PE Pelletizing Machine Application:
Application plastic material: PE ,HDPE,LDPE,PP,BOPP etc.
Material shapes: crushed rigid materials, bottle flakes.
Note: depending on different material properties, various downstream equipment is needed.

Raw Material:

Final Product:

Plastic Granules (Water-ring pelletizer type)	Plastic Granules (noodle pelletizer type)

Waste Plastic PP PE Pelletizing Machine Process flow:
Conveying feeding→ Metal detector →Film Agglomerator /Compactor →Degassing single screw extruder →Hydraulic filer exchanger→ Mould head →water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hoper→ Finished product packing.

Waste Plastic PP PE Pelletizing Machine Video:

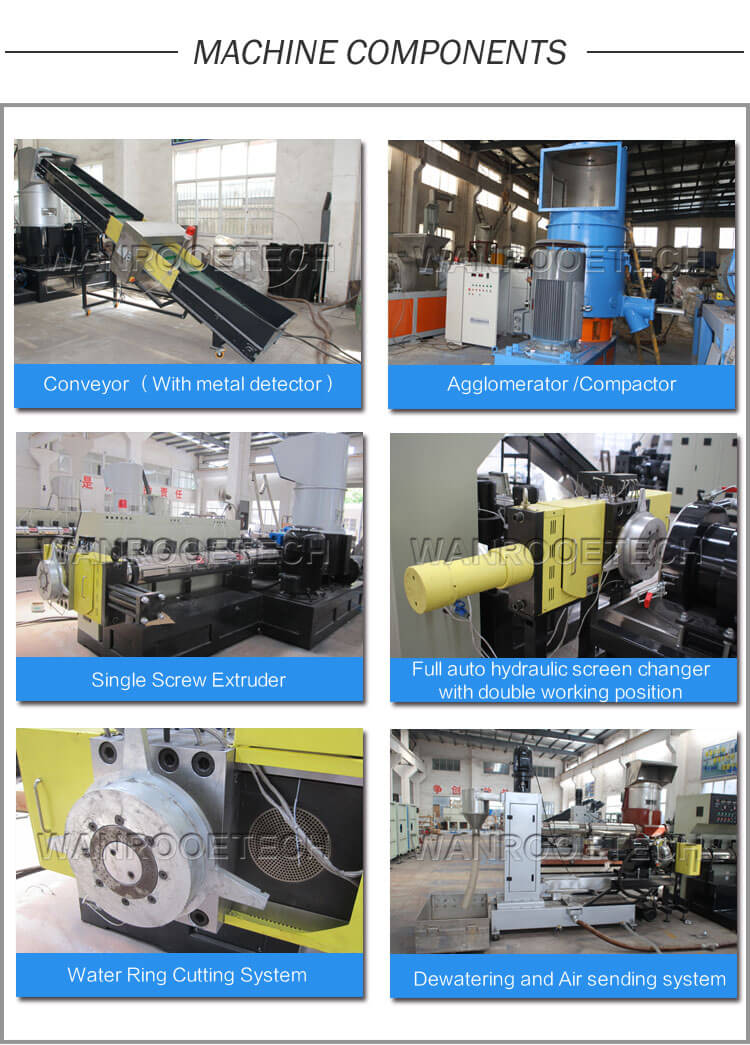

Waste Plastic PP PE Pelletizing Machine Components:

Detailed description of each item:
1. Conveyor: convey PP PE film or flakes into the compactor.
2. PE film Agglomerator /Compactor: crushing and compress film, and feed compressed film into extruder forced, to make the production capacity high and stable.
3. Extruding system: plasticizing material and exhausting gas.
4. High speed Net exchanging system and Die-head: filter material impurity, to make production more stable.
5. water ring pelletizing machine: cutting pellets in water.
6. Water tank: cooling pellets.
7. Dewater machine: make pellets dry.
8. Vibration sieve: remove bad pellet and keep good pellet.
9. Air Blower: convey good pellets into the silo.
10: Storage silo: keep pellet.

Waste Plastic PP PE Pelletizing Machine Equipment List：

Waste Plastic PP PE Pelletizing Machine Features:
1. Allow free assembling of the screw component, based on raw material type.
2. Using the suitable die head for palletizing, such as water ring cutting, under-water cutting and hot face cutting.
3. High efficient force feeder ensures stable high capacity material feeding, low power consumption.
4. Main screw has vacuum exhaustion.
5. Water ring granulator machine, attached with dryer. 6. Single screw extruder, with specially designed screw, barrel, venting system, ensures the good quality of the final products. 7. Pelletizing style: standard cutting with extrusion mold. Even cutting ensures good shape.
