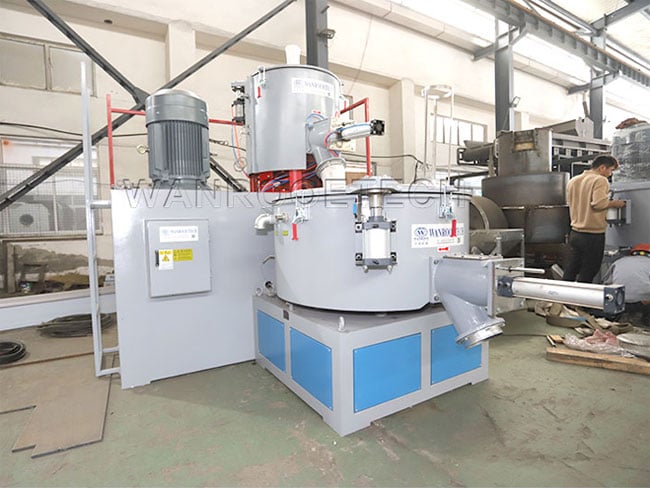

High-Speed Mixer Machine Specific Selection Method

We all know that the high-speed mixer is widely applicable, mainly for the mixing of powders, additives, masterbatches, color powder, plastics and granules and other materials. Coupled with its own advantages of uniform mixing and high mixing efficiency many users have joined. Then how to buy and sell suitable for their own mixing equipment has become a topic of concern for many users. The following wanrooe machinery to tell you how to choose the type.

1. according to the process conditions, mixing purposes and requirements, the choice of mixer type, the choice of mixer type should fully grasp the dynamic characteristics of the mixer and the mixer in the process of mixing the flow state and the causal relationship between various mixing purposes.

2. In accordance with the determined type of agitator and agitator in the process of mixing the flow state, the process of mixing time, settling speed, dispersion control requirements, through experimental means and computer simulation design, determine the motor power, stirring speed, agitator diameter.

3.  in accordance with the high-speed mixer motor power, stirring speed and process conditions, from the reducer selection table to determine the choice of reducer models. If the actual working torque to select the reducer, the actual working torque should be less than the allowable torque of the reducer.

4. Select the frame and coupling of the same type and specification as d according to the output shaft head d of the reducer and the support mode of the mixing shaft system

5. Select the shaft seal type according to the size of the mixing head do of the frame, the installation space and the working pressure and working temperature.

6. In accordance with the installation form and structural requirements, design and select the structure type of mixing shaft, and check its strength and rigidity.

If the design is based on rigid shaft, n/nk≤0.7 under the condition of meeting strength.

If designed according to the flexible shaft, in order to meet the strength conditions n/nk>=1.3

7. In accordance with the nominal heart size DN of the high-speed mixer frame, the shaft type and pressure level of the mixing shaft, choose to install the bottom cover, flange base or flange.

8, in accordance with the high-speed mixer support and vibration conditions, to determine whether to configure the auxiliary support.

In the above selection process, the combination of high-speed mixer mixing device, the configuration can be referred to (mixing device design selection process diagram), the key size of the connection between the components in the configuration process is the size of the shaft head, the same size of the shaft head components in principle can be interchangeable, combined.
