PP Jumbo Bags Washing Recycling Line Description :
PP Jumbo Bags Washing Recycling Line is a complete line for crushing washing and drying of PP woven bags, PP jumbo bags, PP big bags, PP sacks, waste cement bags, etc. Washing and cleaning PP materials is different from washing PE film, PP is more difficult to crush and dry, and PP will create more wastes, our PP Woven Bags Washing Line is designed to solve these problems properly.
We focus on the machines quality and after-sales service mostly, we believe the only way of development is to satisfy our customers. So we only use real SUS304 stainless steel, we only use real famous brand bearings and electric elements, also we can provide quick response for any technical questions and debugging.
The capacity for the PP woven bags washing machine is from 300kg/h to 1000kg/h.
PP Jumbo Bags Washing Recycling Line Process Flow:
| NO | Process | Machine | Description |
| 1 | Send the film and bags to the wet crusher machine | Conveyor with Metal Detector(Optional) | It separates impurities such as metals in the films and bags, Sends the materials to the wet crusher machine |
| 2 | Cuts the films and bags into small pieces size | Wet Crusher Machine | A wet crusher cuts the PP / PE film into small pieces approximately 10-20mm in size and moving onto the next piece of equipment. |
| 3 | Send the films and bags to the Floating Washing machine | Screw Feeder | Put the films and bags into the Hot washer to clean |

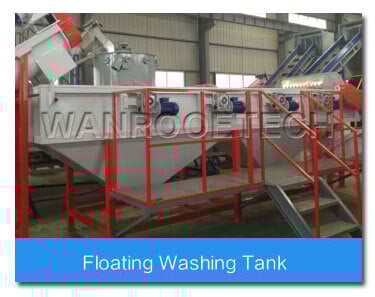

| 4 | The first time Floating wash the bags and films | Floating Washing Tank | As the PP / PE films enter the friction washer, the plastic film rubs against each other at high speeds getting rid of hard-to-remove contamination. |
| 5 | Feeding bags and film scraps to friction washer | Screw Feeder | Put the films and bags into the High-speed Friction Washer to clean |
| 6 | Separate the contamination from film and bags | High-Speed Friction Washing Machine | After crushing material from enters the mouth, through the high speed on the axis of the blade flap and spray water to the common function of good cleaning effect. |
| 7 | The second time Floating wash the bags and films | Floating Washing Tank | It is used in cleaning film and bags, making the film cleaner. |
| 8 | Dry the film and bags | Dewatering Machine | The dewatering machine uses centrifugal force to spin water moisture off the films and bags. |
| 9 | Hot air to dry the films and bags | Pipeline Dryer | Using the hot air to take the humidity away from the clean material. |
| 10 | Storage dry pieces of films and bags | Storage silo | A storage tank for the clean, dry pieces of PP PE films and bags. |
| 11 | make film and bags into granules
(Optional) | Pelletizer / Extruder | We offer both single-screw extruders and twin-screw extruders. Based on your requirements, we offer both one-stage and double-stage pelletizing setups where granules can be formed using a granulator or water-ring cutting. |
PP Jumbo Bags Washing Recycling Line Components:
PP Jumbo Bags Washing Recycling Line Features :
To crushing washing recycling the used, dirty waste PP PE films/bags, protect the environment, Avoid white pollution. This recycling line is composed of crusher, cold & hot washing system, dewatering, drying, packing system, etc.
This PP PE waste plastic crushing, recycling and washing recycling machine line can easily wash and recycle waste PP PE films/bags. Waste and dirty PP PE films/bags can be processed step by step, by this recycling machine. It is special for washing PP PE films/bags. We can help to attach equipment at the end of the washing recycling line so that the completely dry flakes can be collected and packed directly after being washed.
The whole production line can design based on how dirty the PP PE films/bags are, and make sure of the quality of the final products.
Coordinating the production line with follow programmed work (granulating system), and will make waste and dirty PP PE films/bags be the PP PE granules material and in order to produce new PP PE products.
Application Areas:
PP Jumbo Bags Washing Recycling Line of Wanrooetech is capable of processing a wide range of hard and soft plastic waste, for example, agricultural films, greenhouse films, package films and bags, HDPE/PP bottles, barrels, boxes, etc.
