Rubber Pulverizer Mill Machine Rubber Pulverizer Mill Machine

the rubber pulverizer is used to pulverize the rubber granules to get the fine rubber powder. there is no any pollution discharge. can be run in 24 hours, will not influence by the outside surroundings and degree. The final size can be 20-200msh.

Quantity:
Share this:
  • Product Description
  • Video
  • Parameter

Rubber Pulverizer Mill Machine Brief Instruction:

The rubber pulverizer is used to pulverize the rubber granules to get the fine rubber powder. there is no any pollution discharge. can be run in 24 hours, will not influence by the outside surroundings and degree. The final size can be 20-200msh.

Until now, we have opened many markets, such as, Mexico, Russia, Poland, India etc. We hope we can achieve much more success in the near future.

Rubber Pulverizer, Tire Pulverizer, Rubber pulverizer machine, Tire Recycling, Pulverizer Machine

Rubber Pulverizer Mill Machine Application:

Rubber powder is widely used in sports plastic playgrounds, playgrounds,

Rubber tile, waterproof membrane, waterproof coating, road modified asphalt, rubber products and other fields.


Rubber Pulverizer Mill Machine Working Principle:

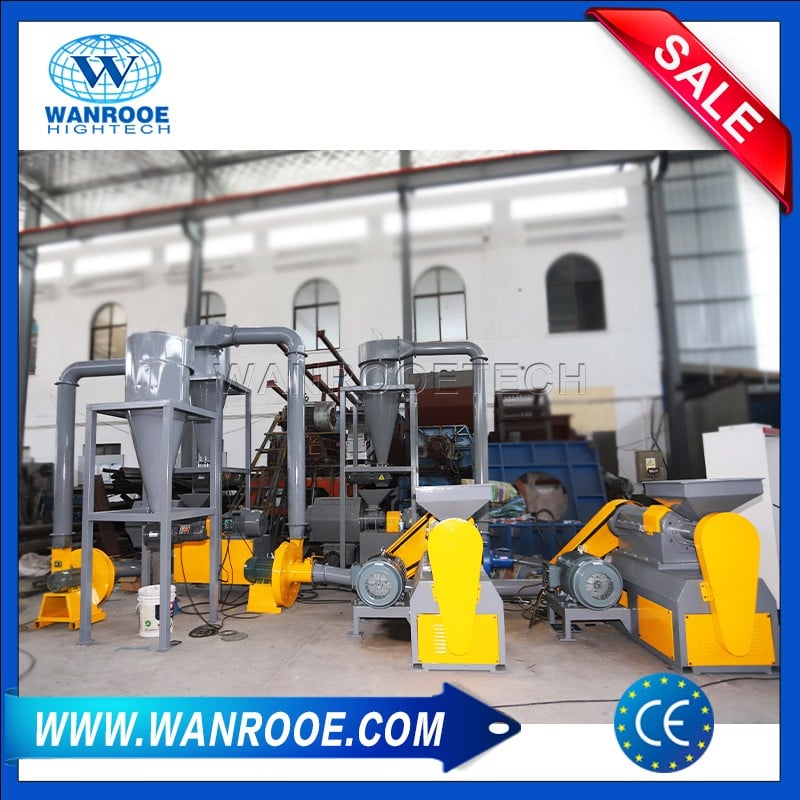

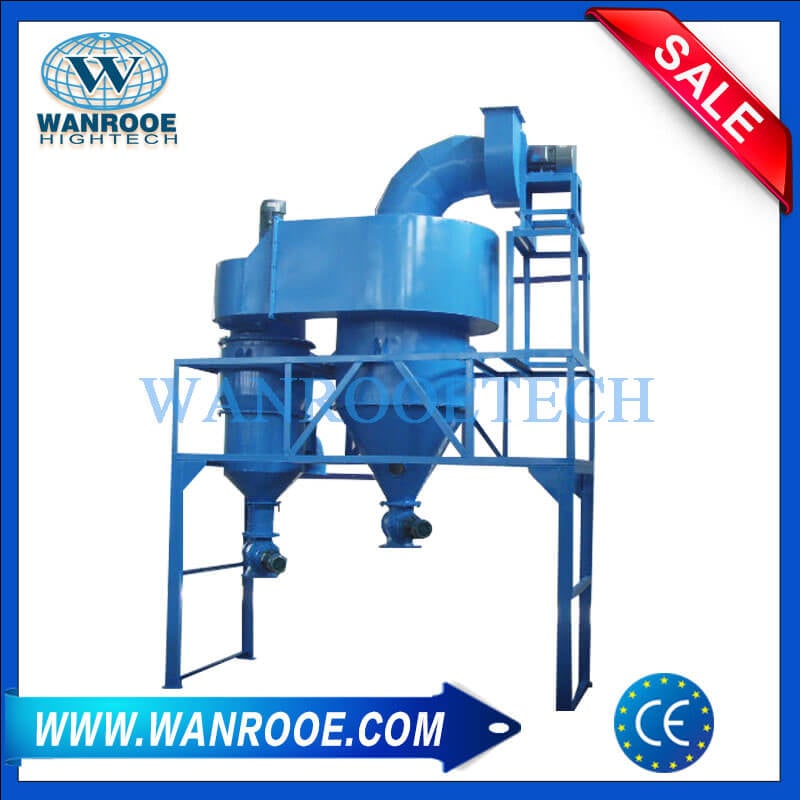

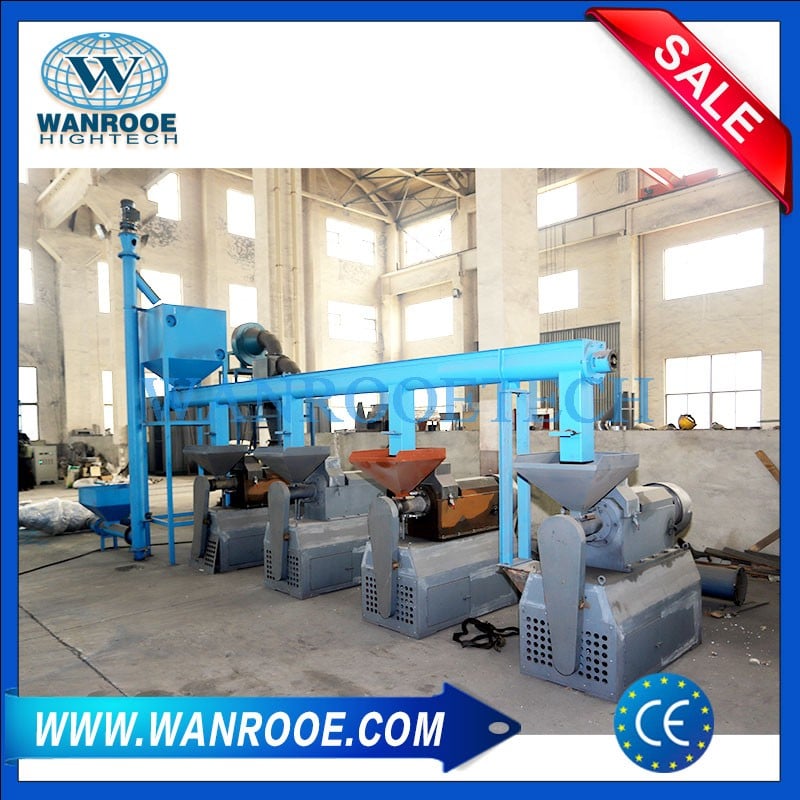

Rubber pulverizer machine is made up of three sets of grinding, cyclone silo and set of electrical equipment. The main grinding machine is made up of a frame, main motor, electric controlling cabinet, feeding mechanisms and one pair of grinding disc. The basic principle for the relative motion through two micropipette grinding materials, cutting, grinding and achieving the goal. Using the wind, water temperature, effectively controlled by powder grinding materials to ensure the quality. Sheets-feeder chooses stepless speed, can according to different materials, and adjust the corresponding feeding speed, thus obtains the optimal output and quality. Through collecting agencies, take whirlwind, without any product powder dust. Small size, low noise, high output, low energy consumption, simple operation, easy disassembly, without any environmental pollution. Income and fine powder with numerous burr and powder surface fractal, easy and other colloids.


Rubber Pulverizer Mill Machine Details:
1. Top quality of the main Frame
Adopted Whole frame Cast Steel, which can avoid the machine being out of shape and make the fixed disc and rotating disc gap different, producing too much heat, can’t work anymore!

rubber tire pulverizer main frame

2. How to do adjust the powder size and disc gap
Use this knob, it is convenient to adjust the gap between blades, just one hand can be operated easily! At the same time, there are rules on the disc.

rubber tire pulverizer knob

3. Rotating and Fixed Disc which are adopted special alloy steel material, which can make sure long time run, and reduce your maintenance workload!

rubber tire pulverizer blade knife

4. How to cool the grinding disc
Both of the fixed blades and also rotating blades are equipped with water circulation cooling system, avoiding the rubber melt, improving the capacity!

How to cool the grinding disc

5. Feeding Speed Adjust
Mechanical feeding speed adjusting method, much more reliable, and stable, also can allow you to adjust the feeding speed stepless, no need for extra VFD cost!

rubber pulverizer Feeding Speed Adjust

6. Control cabinet
The Rubber Pulverizer machine adopts a digital control device, which can allow you to know the grinding disc temperature, main motor load or main current, it is great to help for the operation of the pulverizer machine!

rubber pulverizer control cabinet

Rubber Pulverizer Mill Machine Features:

1. Shred and pulverize the waste tire into the rubber power of 40-120mesh, and automatically separate the steel wire, fiber, Nylon completely through magnet separator and vibrating screen at normal temperature.

2. Compact structure, small space and easy maintenance

3. Lower energy consumption and good cost performance of investment

4. High-automatic and programmed control, higher co-operation stability and more efficient running

5.No polluted water, no waste gas and no waste during the production process.

Rubber Pulverizer, Tire Pulverizer, Rubber pulverizer machine, Tire Recycling, Pulverizer Machine

Rubber Mill ,Rubber Powder Pulverizer,Rubber Powder Making Line,Tire Pulverizer

ModelPNRP-280PNRP-300
Main motor power22kw*3=66kw30kw*3=90kw
Speed motor power1.5kw*3=4.5kw1.5kw*3=4.5kw
Air blower power7.5kw7.5kw
Air seal power0.75kw0.75kw
Feed size1-8mm1-8mm
Final fineness20-80mesh30-100mesh
Capacity200-500kg/h300-500kg/h
Working temperature≤70℃≤70℃
Dimension1560*1500*1400mm1560*1500*1400mm
Weight2000kg2500kg
×
