PVC SPC WPC Vinyl Plastic Floor Crushed Material Pulverizer Mill PVC SPC WPC Vinyl Plastic Floor Crushed  Material Pulverizer Mill

PVC SPC WPC Vinyl Plastic Floor Crushed Material Pulverizer Mill is designed by our factory using Germany technology and our own production experience. It can be used for pvc plastic from pvc pipe,profile,soft sheet,bottle,card from low to moderate hardness PVC, PE, plastic floor, pvc floor, spc floor and so on.

Quantity:
Share this:
  • Product Description
  • Video
  • Parameter
  • Optional Components

Application Areas:

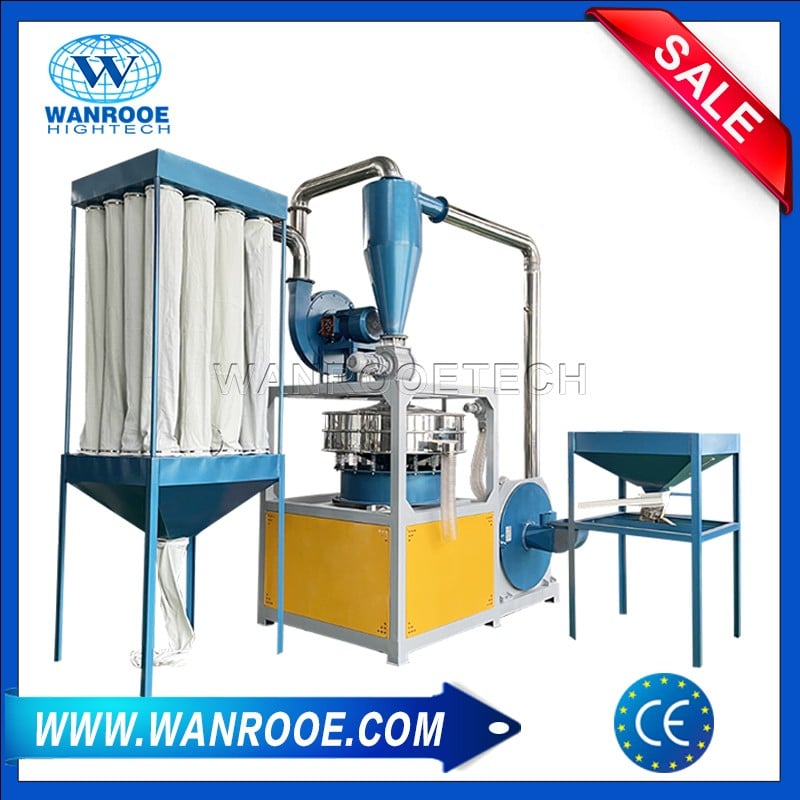

PVC SPC WPC Vinyl Plastic Floor Crushed  Material Pulverizer Mill is designed by our factory using German technology and our own production experience. It can be used for PVC plastic from PVC pipe, profile, soft sheet, bottle, card from low to moderate hardness PVC, PE, plastic floor, PVC floor, SPC floor and so on.

PVC Pipe Regrind Material Pulverizer Mill

Description:
This PNMP PVC Plastic mill is chiefly designed to grind PVC. The pulverizer uses turbo type blade. The static blade and rotary blade could be adjusted, thus you can get different size of PVC powder with one grinder. High output, low energy consumption and long lifespan attract many customers around the world. It can be used for PVC plastic from PVC pipe/profile/soft sheet/bottle/card from low to moderate hardness PVC.
The output of our PNMP pulverizer can reach 100-900kg/h (15-100mesh).
The plastic pulverizer machine is mainly composed of electric motor, disc type blade, feeding fan, vibrating sieve, dust removing system, etc.
According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc.



PVC Pipe Regrind Material Pulverizer Mill Machine Components:

Vibration Loader

PVC Pulverizer Disc

Conveyor belt feeding

Used to load grinding PVC flake into pulverizer chamber by belt convey, The top of roller on belt conveyor made by magnetic roller which can remove any ferrous material from Plastic flake; It can protect the milling blade and increase the purity level of final plastic powder, the material is sent to the vibrating screen by vibration

PVC Pulverizer Disc

Turbo-type pulverizer disc, Widely used for recycling PVC, such as PVC pipe, PVC profile, PVC sheets, SPC floor

PVC Pulverizer Blade

Conveying Pipe

PVC Pulverizer Blade

Rotating and fixed blades, D2 or SKD-11 material, wear-resistant.The number of blades varies depending on the device model.

Conveying Pipe

All 304 stainless steel, durable.Non-rusting, non-sticking powder.Double layer pipeline, water supply in the middle layer.

PVC pulverizer vibrating screenIntelligent Control

Vibrating Screen

Installation of screen according to the grinding mesh, continuous production, automatic classification and screening, easy to replace.

Intelligent Control

Can be adjusted according to the actual situation simple operation, saving time and effort

Bags Type Dust CatcherPulse Dust Collecter

Bags Type Dust Catcher

Smaller footprint, lower price, can reduce the workshop dust, customers with higher requirements for environmental protection can choose pulse dust catcher.

Pulse Dust Collecter(Optional)

Collect dust from products during the grinding process to prevent pollution.


Technical Features:
1. PNMP Pulverizer can easy to grind all kinds of Hard & Soft PVC into powder.
2. The dust collector is added to effectively reduce dust pollution.
3. The discharging of the main fan reduces the labor intensity of operating workers.
4. The door cover of the host can be opened for the convenience of maintenance and replacement of cutters.
5. The mill uses the water and wind double cooling system, Prevent bearing and other parts from overheating.
6. The powder mesh is adjustable(15-100mesh).
7. Easy installation and maintenance, just open the door to clean up.
8. Well-known brand accessories, such as SKF bearings and Siemens motors, can work for a long time, saving the trouble of changing accessories frequently.
9. With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.


Related Equipment:

PVC Pulverizer Mill Blade

PVC Pipe Making Machine

PVC Pelletizing Line

PVC High Speed Mixer Machine

PCB Powder Making Machine, PCB Pulverizer, Computer Board Pulverizer, Cell Phone Board Pulverizer, TV Board Pulverizer

ModelPNMP-500PNMP-600PNMP-800PNMP-1000
Disc Diameter (mm)5006008001000
Main Motor Power(kw)375575110
Vibrating Sieve Power(kw)0.750.750.751.1
Capacity(kg/h)100-300200-500300-800400-900
Dimension L*W*H(mm)3500x1300x37003700x1450x37004300x1700x40005000x2000x4300

Optional Components

Magnetic Filter Frame

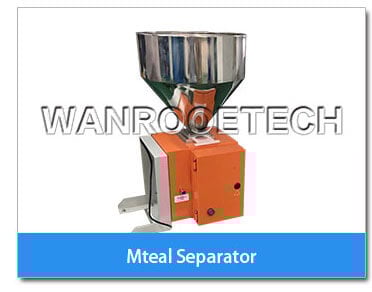

Metal Separator For Pulverizer Mill

Plastic Granules Feeder

Optional-Components_08

PNWC Air-cooled Type Water Chiller

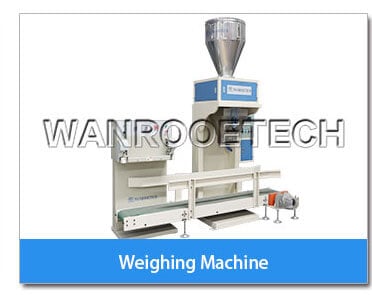

Automatic Weighing Packing Machine

×
