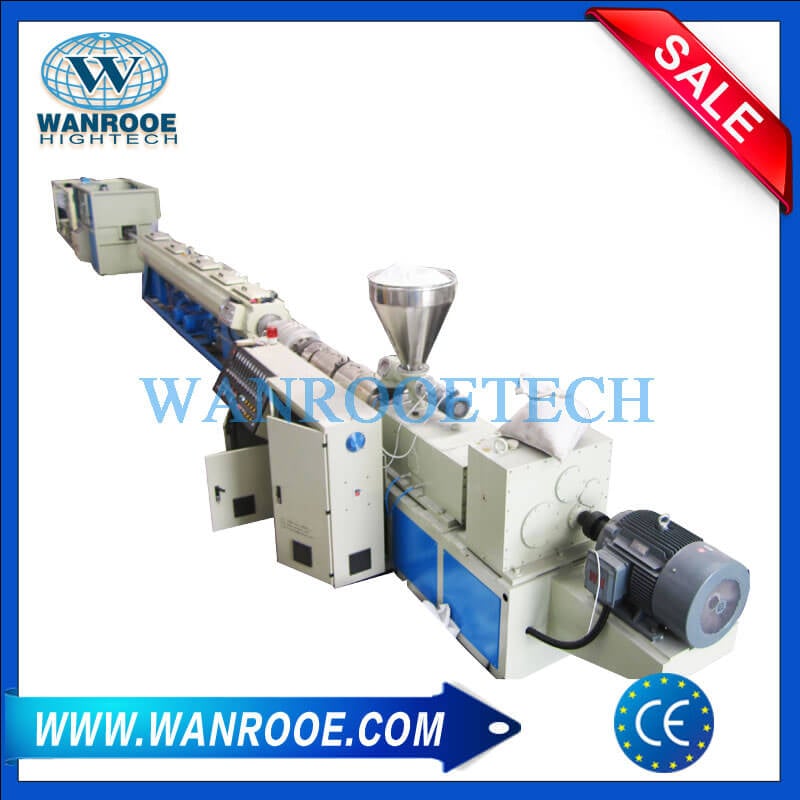

PVC Pipe Extrusion Machine PVC Pipe Extrusion Machine

PVC Pipe Extrusion Line/PVC Pipe Production Line/PVC plastic pipe production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.

Quantity:
Share this:
  • Product Description
  • Parameter
  • Video

PVC Pipe Extrusion Machine Description:

PVC plastic pipe material production line is mainly used in the area of the agricultural water supply system, architectural water supply system, the pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness. This machine group consists mainly of twin conical (parallel) screws extruder, vacuum calibrating tank, haul-off unit, cutting unit, tilter, etc. single screw extruder and haul-off unit have applied imported A/C inverter, both vacuum pump and driving motor have applied excellent products. The drawing machine includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, etc. Saw cutting or planet cutting can be applied, it is additionally applied with length measuring meter and thickness increasing device, the property of the machine group is reliable, the production efficiency is high. It has reached the world advanced level.


PVC Pipe Extrusion Machine Components:

machine components

Conical twin screw extruder

PVC Mould

pipe vacuum tank

haul off machine

pipe cutter machine

aoto belling machine

PVC Pipe Extrusion Machine Feature:

1. The specified screw design of the profile gets better plasticizing and more stable extrusion. For high filling formula, the screw of SKD61(Germany) imported material with alloy sleeve treatment barrel can guarantee perfect solution

2. Swallowtail split flow support type extrusion mould can reduce joint line of the melt material, with large compression ratio design, pipe density will be higher and mechanical properties will be stronger

3. Vacuum calibration tank adopts high-efficiency two-chamber which bring fast cooling

4. The haul-off adopts multi belt structure, the pipe suffers uniform stress and less deformation reaction is more stable and reliable, It can realize the stable traction for 20-1000mm pipe, Each traction belt can be independently controlled and mutual switch to meet the needs of different diameters

5. Planetary cutter adopts mechanical and hydraulic feeding in option,It can realize synchronous precision cutting off pipe and chamfering function


PVC Pipe Extrusion Line, PVC Pipe Extrusion Machine, PVC Pipe Making Machine, Plastic Pipe Making Machine, PVC Extruder

PVC Pipe Extrusion Machine Application Areas:

PVC Pipe Extrusion Line/PVC Pipe Production Line/PVC plastic pipe production line is mainly used in the area of the agricultural water supply system, architectural water supply system, the pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.


ModelPipe ronge(mm)ExtrudersMax output(kg/h)Max speedTotal power(kw)Line length(m)
PVC-50x216-50SJZ51/1051506m6020
PVC-6316-63SJZ45/10012010m4520
PVC-11050-110SJZ51/1051506m6024
PVC-16063-160SJZ65/1323005m10024
PVC-250110-250SJZ80/1564003.5m12028
PVC-315163-315SJZ80/1564003m16028
PVC-450250-450SJZ92/1887001.5m20036
PVC-630315-630SJZ92/1887000.9m23036


×
