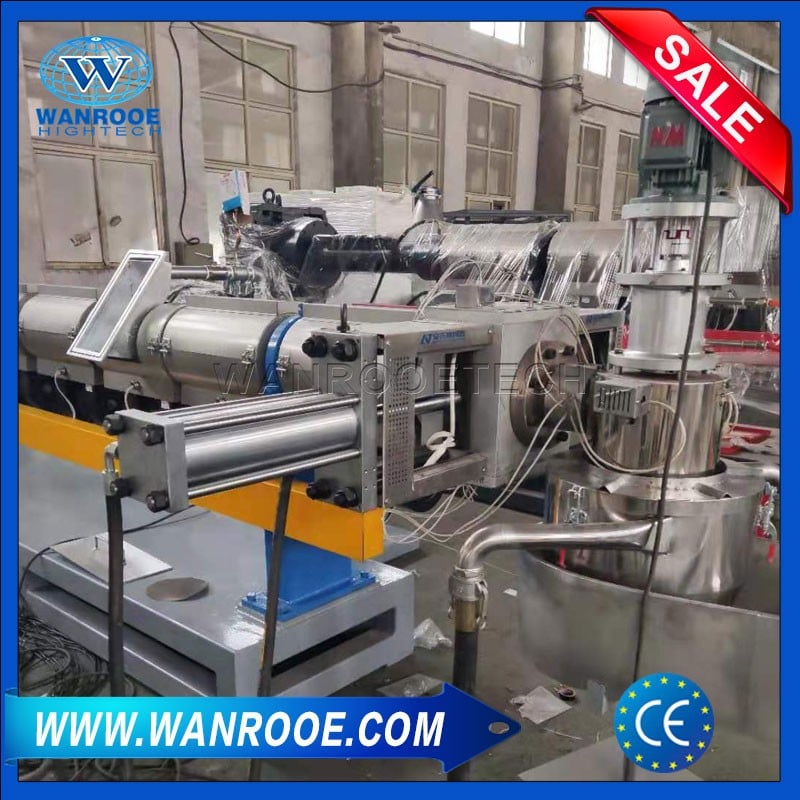

PP PS Grinded Material Plastic Pelletizing Machine PP PS Grinded Material Plastic Pelletizing Machine

Detailed description of each items:
1. Screw Feeder : convey Plastic scraps into the main machine.
2. Force feeder: feed the material to the extruder with a designed speed, the speed can be adjust
3. Extruding system: plasticizing material and exhausting gas.
4. High speed Net exchanging system and Die-head: filter material impurity, to make production more stable.
5. water ring pelletizing machine: cutting pellets in water.

Quantity:
Share this:
  • Product Description
  • Video
  • Parameters

PP PS Grinded Material Plastic Pelletizing Machine Description:
The single-stage regrind pelletizing production line is ideal equipment for plastic granulator, especially for PP, PE film scrap, HDPE, PP, BOPP, HDPE, LDPE, LLDPE, ABS, EPE, EPS, XPS, Stretch film, Non woven fabric, Woven bags solid recovery of the broken material recycling and pelletizing. The production line has a novel design, reasonable structure, stable operation, low noise, low power consumption and high-yield advantage.


PP PS Grinded Material Plastic Pelletizing Machine Process flow:
Screw feeder ( OPTIONAL)→ Force feeder→Degassing single screw extruder →Hydraulic filer exchanger→ Mould head →water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hoper→ Finished product packing.


PP PS Grinded Material Plastic Pelletizing Machine Components:

Screw loader

Force Feeder

Screw loader
Use to loading flakes into dosing feeding
Force Feeder
Belt conveyor for plastic scrap feeding automatically, Feeding speed adjustable by inverter controller according to the feeding amount.

Single Screw Extruder

Full Auto Hydraulic Screen Changer With Double Working Position

Single Screw Extruder
Our unique design single screw extruder gently plasticizes and homogenizes the materials. Our bi-metal extruder has great anti-corrosion resistant, wear resistant and long life time.
Full Auto Hydraulic Screen Changer With Double Working Position
Long screen lifetime, lower screen change frequency: Long filter lifetime owing to large filter areas. Easy to use and none-stop type: easy and quick screen change and do not need to stop the running machine.

Water Ring Cutting System

Dewatering And Air Sending System

Water Ring Pelletizing System
Cutting the material into pellet. Water ring pelletizing system set as the standard granulating method. self-adjusting pelletizing head for the best granulate quality and long uptime thanks to consistently correct blades pressure.
Dewatering And Air Sending System
Centrifugal dryer to get well-dried final granules.
Electronic Control

Silo

Electronic Control
The whole model adopts frequency conversion control and conforms to international standards such as CE/CSA.
Silo

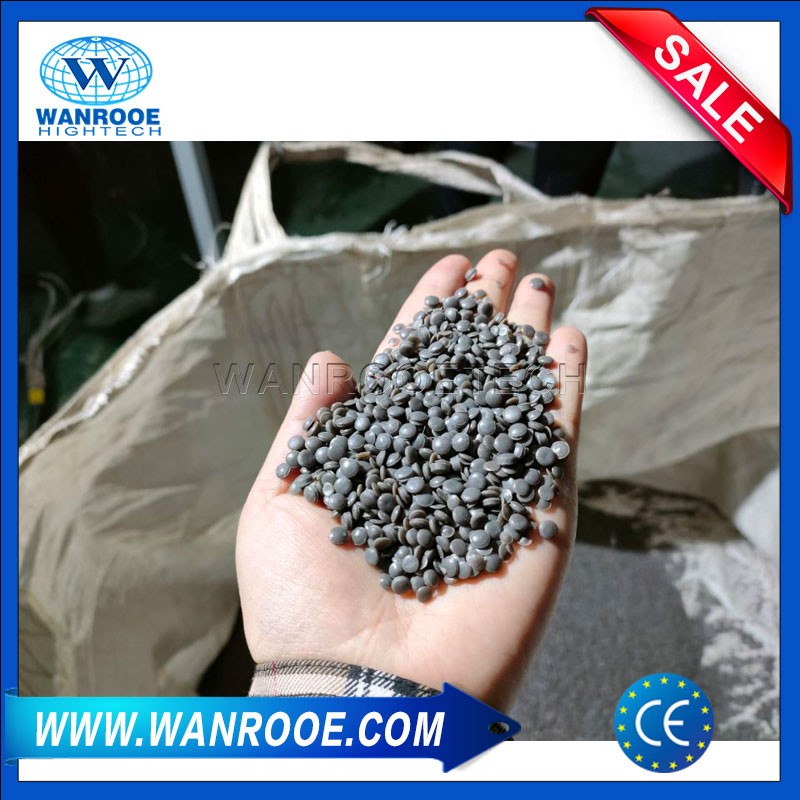

Storage the final pellets in a bag.


Detailed description of each item:
1.Screw Feeder: convey Plastic scraps into the main machine.
2. Force feeder: feed the material to the extruder with a designed speed, the speed can be adjusted
3. Extruding system: plasticizing material and exhausting gas.
4. High speed Net exchanging system and Die-head: filter material impurity, to make production more stable.
5. water ring pelletizing machine: cutting pellets in water.
6. Water tank: cooling pellets.
7. Dewater machine: make pellets dry.
8. Vibration sieve: remove bad pellet and keep good pellet.
9. Air Blower: convey good pellets into the silo.
10: Storage silo: keep pellet.


PP PS Grinded Material Plastic Pelletizing Machine Equipment List:

1
Screw Feeder(OPTIONAL)
2
Force feeder
3
Single screw Extruder
4
Die head and screen changing device
5
Water ring cutter
6
Vibrating screen
7
Vertical dewatering machine
8
Air drying system
9
Cyclone hopper


PP PS Grinded Material Plastic Pelletizing Machine Features:
1. Allow free assembling of the screw component, based on raw material type.
2. Using the suitable die head for palletizing, such as water ring cutting, under-water cutting and hot face cutting.
3. High efficient force feeder ensures stable high capacity material feeding, low power consumption.
4. The main screw has vacuum exhaustion.
5. Water ring granulator machine, attached with dryer.
6. Single screw extruder, with a specially designed screw, barrel, venting system, ensures the good quality of the final products.
7. Pelletizing style: standard cutting with extrusion mold. Even cutting ensures good shape.


PP PS Grinded Material Plastic Pelletizing Machine Application:
PE, PP, BOPP, HDPE, LDPE, LLDPE, ABS, EPE, EPS, XPS, Stretch film, Non woven fabric, Woven bags, etc

Plastic Pelletizing Machine,Regrind Pelletizing Machine,Single Stage Regrind Pelletizing Line,Water Ring Pelletizer,Plastic granulator machine

ModelScrew Dia(mm)L/DCapacity(kg/h)
PNHS-65D6528-3360-80
PNHS-90D9028-3380-120
PNHS-100D10028-33100-180
PNHS-120D12025-33200-300
PNHS-150D15025-33300-500
PNHS-200D20025-33500-800
×
